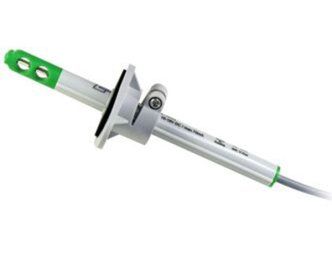

Air Velocity Transmitter

EE575 Air speed transmitter are designed for high volume applications. Because of small design can be attached to almost all applications. Based on Hot film anemometer because of use of high-quality film sensor provide high precision and a stable measurement.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Measurement Range: 0 - 5m/sn, 0 – 10m/sn, 0 -20m/sn
• Output Signal: 0 – 5 V, 0 -10 V
• Precision: 0.5... 5m/s (100...1000ft/min): ±(0.2m/s / 40ft/min +3% of measuring value)
  1... 10m/s (200...2000ft/min): ±(0.3m/s / 60ft/min +4% of measuring value)
  1... 20m/s (200...4000ft/min): ±(0.4m/s / 80ft/min +6% of measuring value)
• Sampling Time: 4sn.
• Supply Voltage: 10 – 19 V DC veya 19 – 29 V DC
• Working Range Humidity: 10 – 95% RH 0…60 °C
• Cable Length: 0,5 mt
