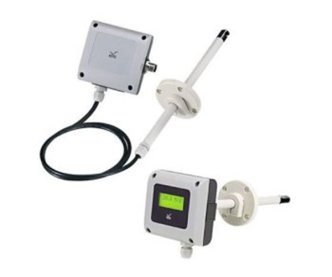

FTS34/35 Thermal Air Velocity Transmitter

Competitive price and Service | Air Velocity Transmitter

  • Linear calibration function
  • Dip switch for physical situations
  • RS485 Modbus communication interface, analog output,
  • Offset adjustment with RS485 Modbus and dipswitch
  • Station number setting with dipswitch and RS485 Modbus
  • Configurable measuring range,
  • Programmable free interface software.

Technical Properties:

  • Brand / Origin: eYc-Tech / Taiwan
  • Product Type: FTS34/35
  • Sensor type: Thermal mass flow sensor
  • Air velocity measuring range: 2 m/s; 10m/s;20m/s;40m/s
  • Air speed min. measuring range: 0.2 m/s
  • Accuracy (+25°C): Air velocity: ±2% FS (Non-linear error, hysteresis error, repeatability error) / Thermal sensitivity temperature.
  • Error: 0.1%/℃
  • Sampling Time: < 3 sec.
  • Output: 4 ... 20 mA / DC 0 ... 10 V
  • Signal connection: 3-wire
  • Load resistance: ≦ 500 Ω (Current output) / ≧ 10 KΩ (Voltage output)
  • Overvoltage protection: DC : <45V ; AC : <40V
  • Power supply: DC 8 ... 35V / AC 12 ... 30 V
  • IP rating: IP54
  • Display: LCD Optional
