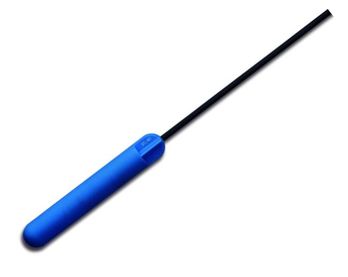

Cable-Level Switch TUBA 1

Cable Level Switch was designed to measure of liquid level of the tanks and is size will pass in the small hole like 1''.

When liquid level reaches to float it provide the positional change of the mechanical switches by its angle change +/- 20º. Where connection to system gives signal or close signal of system.

Advantages

• Easy to install and easy to use
• Level measurement up to 55 meter in well
• Ecological level switch (does not contain lead and mercury)

Using Areas

• In Clean liquids, Rain waters, Little aggressive liquids (oil, fuel, dye...) level measurement
• In pump operation is used for many applications.
• Unloading and filling function;
• In the overflow and dry-run function
• In high and low level alarms

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Switching Angle: +/-20 º
• Maximum Pressure: 5,5 Bar
• Can be worked liquid densities: between 0,75 – 1,5
• Withstand Maximum Current: 12 A Resiztif – 6 Amper Inductive
