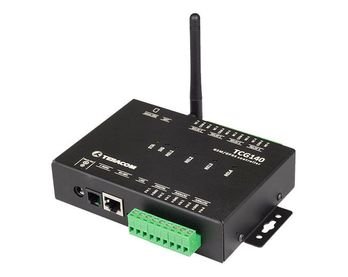

TCG140 is a versatile GSM-GPRS remote IO module designed for distributed monitoring and control over mobile networks. It can function both as a standalone device or seamlessly integrate into data acquisition (SCADA) systems.

This GSM-GPRS remote IO module offers a range of inputs, including two digital 'dry contact' inputs, two analog inputs with a 0-10V range, and two analog inputs with either a 0-10V or 0-20mA range. The user has the flexibility to configure the mode of analog inputs through the graphical user interface (GUI).

The device features support for both 1-Wire and RS-485 (MODBUS RTU) interfaces. These interfaces can accommodate up to 8 sensors, with the allocation shared between the two interfaces in a user-defined manner.

All monitored parameters are recorded within the device's internal FLASH memory. These records are generated based on predefined time intervals and/or triggered by alarm conditions. The log file can be periodically uploaded to a dedicated server using HTTP Post.

Furthermore, the device is equipped with four relays, featuring both normally open and normally closed contacts. These relays can be activated either remotely (via SMS, call, or HTTP API command) or locally. For local activation, one of the monitored parameters is assigned to the relay, with the relay being activated upon the alarm state of the assigned parameter.

TCG140 is capable of initiating connections (HTTP Post) to remote dedicated servers. The content of this post includes an XML file containing the current values of monitored parameters. The HTTP Post can be sent periodically or in response to alarm conditions. In return for the HTTP Post, an HTTP API command can be received to trigger relay activation or modify certain settings.

In addition to HTTP Post alerts, the device can send SMS and/or email notifications to up to 5 recipients, offering an additional layer of alerting

Key Specifications:

  • Comprehensive quad-bands GSM connectivity.
  • Convenient setup options via USB (using a Windows setup program) or SMS.
  • Incorporates 2 digital inputs designed for 'dry contact' operations.
  • 1-Wire interface accommodating connectivity for up to 8 Teracom sensors.
  • RS-485 interface supporting up to 8 MODBUS RTU sensors.
  • Features 2 analog inputs with a range of 0-10VDC.
  • 2 additional analog inputs offering the choice of 0-10VDC or 0-20mA mode via web-based control.
  • Includes 4 relay outputs with both Normally Open (NO) and Normally Closed (NC) contacts.
  • Boasts a data logger capable of storing up to 52,000 records.
  • Periodically uploads data logger files to a remote HTTP server.
  • Periodically sends XML data through HTTP Post to a remote HTTP server.
  • Supports HTTP API commands for flexible control.
  • SMS-based alarm alerts for up to 5 phone numbers.
  • Email-based alarm notifications for up to 5 email recipients, featuring SMTP with TLS support.
  • Offers single-call control, enabling relay activation from up to 5 authorized numbers.
  • Facilitates firmware updates, allowing them to be executed either over USB or through GPRS.

    Use Cases:

    • Monitoring humidity, temperature, and CO2 levels.
    • Mobile environmental monitoring for vehicles.
    • Smart city street lighting control systems.
    • Data logging for industrial processes.
    • Monitoring remote water pump stations.
    • Supervising pharmaceutical and food facilities.

Supported sensors

Humidity and temperature sensor with MODBS RTU interface TSH300
Humidity and temperature sensor with 1-Wire interface TSH206
Temperature sensor with 1-Wire interface TST103
1-Wire Pt100 transmitterTST200
Precision temperature sensor with MODBUS RTU interface TST300
Third party MODBS RTU sensors
1-Wire carbon dioxide sensor TSG200
1-Wire galvanic isolated AC/DC current sensor TSC200
Galvanic isolated voltage sensor with 1-Wire interface TSV200
1-Wire galvanic isolated 0/20mA current loop transmitter TSA200

Technical Properties:

  • Physical characteristics
  • Dimensions: 158 x 119 x 32 mm
  • Weight: 470 g
  • Mounting: wall and DIN rail
    Environmental limits
  • Operating Temperature: -20 to 55°C
  • Storage Temperature: -25 to 60°C
  • Ambient Relative Humidity: 5 to 85% (non-condensing)
  • Standards and Certifications
  • Safety: EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 62311:2008
  • EMC: EN 55022:2010, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013
    EN 301489-1 V1.9.2, EN 301489-7 V1.3.1
  • RFSU: EN 301511 V9.0.2
  • Green Product: RoHS
  • Warranty
  • Warranty period: 3 years
  • Power requirements
  • Input Voltage: 10 to 24 VDC
  • Input Current: 340 mA @ 12 VDC
  • Cellular interface
  • Standards: GSM/GPRS
  • Bands: 850/900/1800/1900 MHz
  • GPRS multi-slot class: 12, 1~12 configurable
  • GPRS terminal device class: Class B
  • Compliant to GSM Phase 2/2+: Class 4 (2W@850/ 900MHz), Class 1 (1W@1800/1900MHz)
  • SIM card size: Micro
  • Antenna connector: SMA-F
  • Analog inputs
  • Isolation: Non isolated
  • Type: Single ended
  • Resolution: 10 bits
  • Mode (Analog inputs 1 and 2): Voltage
  • Mode (Analog inputs 3 and 4): Voltage / Current (WEB interface selectable)
  • Input Range: 0 to 10 VDC, 0 to 20 mA
  • Accuracy: ±1%
  • Sampling Rate: 500mS per channel (averaged value of 250 samples)
  • Input Impedance: 1 mega-ohms (min.)
  • Built-in resistor for current mode: 410 ohms
  • Digital inputs
  • Isolation: Non isolated
  • Type: Dry contact
  • Sampling rate: 10mS
  • Digital filtering time interval: 30mS
  • Relay outputs
  • Type: Form C (N.O. and N.C. contacts)
  • Contact current rating: 3 A @ 24 VDC, 30 VAC (resistive load)
  • Initial insulation resistance: 100 mega-ohms (min.) @ 500 VDC
  • Mechanical endurance: 10 000 000 operations
  • Electrical endurance: 100 000 operations @ 3 A resistive load
  • Contact resistance: 50 milli-ohms max. (initial value)
  • Pulse output: 0.1 Hz at rated load
  • Digital sensor interfaces (1-Wire and RS-485)
  • Output voltage: 5.0 ± 0.3 VDC
  • Maximum output current (for both interfaces): 200 mA
  • Internal FLASH memory
  • Endurance: 100 000 cycles (Every relay status and settings change is a memory cycle.)
