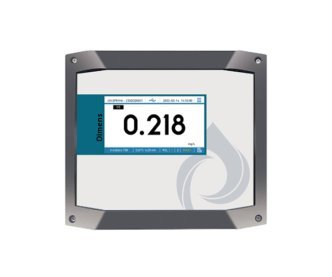

Dimens 68000Z Online Ozone Analyzer

Dimens 68000Z Online Ozone Analyzer

Elevate your water treatment with the 6800OZ Online Ozone Analyzer by Dimens, featuring advanced features for precise ozone analysis. This analyzer is engineered for applications such as drinking and mineral water, as well as the disinfection industry, delivering a measurement range of 0.005 - 2.000 ppm for ozone. Its 2-electrode system operates on the amperometric membrane principle, ensuring accurate results.

Key Features:

  • 2-electrode system with amperometric membrane principle
  • Wide power input and touch screen design for enhanced usability
  • Large backlit LCD display presenting measured values, temperature, and relay status
  • User-friendly operation with Chinese/English menu
  • Password protection to prevent unauthorized access
  • Step-by-step calibration prompts to minimize operational errors
  • 2 programmable Hi/Lo relay outputs
  • Programmable auto-purge relay outputs
  • 2 isolated 4-20mA outputs for versatility
  • RS485 Modbus RTU communication for data exchange
  • Data storage capability with USB stick export support

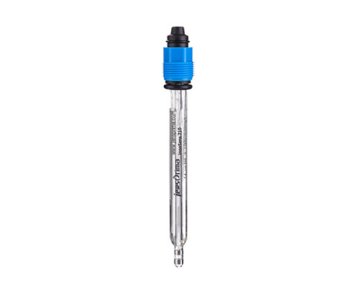

The Dimens 750 ozone sensor complements this system, with a 2-electrode setup using an amperometric cladding principle. It efficiently measures ozone concentrations in water, making it an ideal choice for various water processes, including pure and drinking water. The sensor can also be equipped with an optional pH measurement feature.

Ozone Sensor Specifications:

  • Measurement Range: 0.005 - 2.000 ppm (mg/L)
  • Slope Drift: Approx. <-1%/month
  • Operating Temperature: Water sample temperature: 1-45°C, ambient temperature: 0-55°C
  • Temperature Compensation: Built-in temperature compensation
  • Operating Pressure: Max. 1 bar
  • Flow Rate: Approx. 15-30 l/h
  • pH Operating Range: 2-11 pH
  • Polarization Time: Approx. 1 hour for initial use
  • Response Time (T90): Approx. 15s
  • Zero Point Adjustment: Not required
  • Slope Calibration: Single-point calibration according to DPD method
  • Interference: ClO2 and Cl2
  • Material: PVC and AISI 316 Ti
  • Dimensions: 25mm OD, 220mm length
  • Storage: Sensor: 5-40°C, Electrolyte: 5-35°C, Membrane Cap: 5-40°C
  • Maintenance: 1 year for cap replacement, 3-6 months for electrolyte replacement (depending on operating conditions)

Experience efficient and reliable ozone analysis for your water treatment needs with the 6800OZ Online Ozone Analyzer by Dimens and the Dimens 750 ozone sensor, ensuring optimal water quality control.
