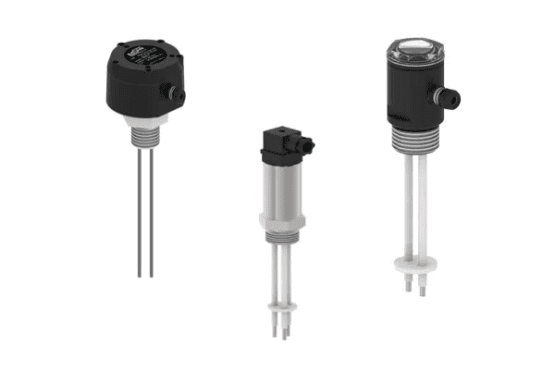

Conductor Type Level Switch - Multi Probe

High Quality Conductor Type Level Switch - Multi Probe

ELC level switches are used to regulate the level of liquid in tanks and boilers. Because it has no moving parts, it can be used in sensitive situations as well as low-density, high-viscosity conductive liquids containing solid particles.

Technicial Properties:

Electrode Material in ELC multi-probe series is 304 Pas. Steel (Std.) Opt. 316 Pass. Steel
Mechanical Connection is R 1"…R 2".
Operating Temperature: 60°C…200°C.
Working Pressure: 6…25 bar.
Number of Electrodes is 3…5.
