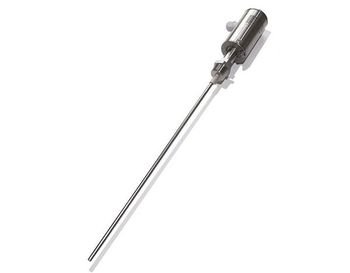

Condurix Level Transmitter

Condurix Liquid Level Sensing Technology

Condurix Level Transmitters are a trusted choice for various industries, including chemical, petrochemical, liquid gas, pharmaceutical, laboratory, offshore, shipbuilding, power plants, energy systems, mechanical engineering, and process and drinking water treatment. These highly adaptable transmitters excel in delivering precise and reliable liquid level measurements, making them indispensable in a multitude of applications across diverse sectors. Whether in the controlled environment of a laboratory or the demanding conditions of a power plant, Condurix Level Transmitters offer exceptional performance and accuracy.

Technical Properties:

  • Brand/Origin: Fafnir (German)
  • Probe Length: Ranges from 150mm to 6 meters (3000mm for high-temperature version)
  • Connection: Threaded or Flange
  • Probe Material: Standard Rust-Resistant Steel, Stainless Steel 316 Ti (Options: 316L, Hastelloy, Titanium, Tantalum)
  • Supply Voltage: 8-30 VDC
  • Temperature Resistance: -40°C to +125°C
  • Fluids Used: Conductivity required (All electrically conductive liquids with 1 µS/cm)
  • Accuracy: ±1 mm or ±1%
  • Output Signal: 4-20mA 2-Wire, 4-20 mA/HART® available
  • Max Pressure: 120 Bar
  • Protection Class: IP68
  • Optional Features: ATEX approval, Material and Calibration Certificate
