THM06 Industrial Grade High Temperature Dew Point Transmitter

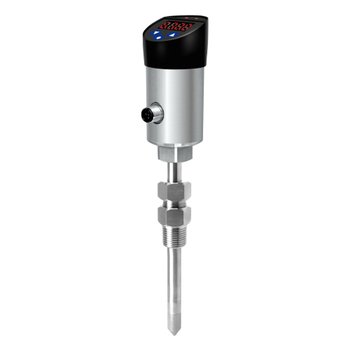

Industrial Temperature and Humidity Transmitter | Multi-Function

The THM06, or Dew Point Transmitter, has a tough exterior and a variety of uses. Dewpoint gauge. It can be used in tough environmental conditions as well. High temperature sensitivity and humidity measurement, capacitive sensor, quick reaction, quick recovery after condensation Compressor dry air flow, which is consistent even in extended periods of high humidity. adjustment for temperature.

Semiconductor / Electronics / Steel industry / Food /
Chemistry / Pharmaceutical / Biotechnology / Industry /
Tobacco industry / Industrial process control (drying or humidification) /
Environmentally controlled / High humidity storage

Technıcal Properties:

Brand / Origin: eYc-Tech / Taiwan
Product Type: THM06 Dew point transmitter
Input: Capacitive humidity sensor and Pt100
Measuring range:
Temperature: -40 ° C ... + 120 ° C; Customized up to 150°C (Optional);
Humidity: 0 ... 100% RH (Non-condensing)
Dew point: -50 ... +60 dp ° C
Absolute humidity: 0 ... 32767 ppm (v)
Signal connection: 4 ... 20 mA / 0 ... 10 V / RS-485
Signal connection: 3-wire
Truth:
Temperature: ± 0.15 °C + 0.002 °C xt actual
Humidity: 0 ... 100% RH (Non-condensing)
Dew point: ±3 dp °C ± (0.02% FS/°C)
Reaction time: t90 (Temperature: +25°C) <30 seconds (SUS sintered filter)
Load resistance: current output: ≦ 500Ω / voltage output: ≧ 10KΩ
Media: Air or ambient compatible with stainless steel
Working environment:
Temperature: Body: -20 ... + 60 ° C; probe: -40 ... + 120 °C
Humidity: Body: 0...90% RH (Non-condensing)
Withstand pressure for SS Probe: 10 bar (-40 ... + 120 ° C)
Supply Voltage: DC 24±10%
Electrical connections: M12 metal connector
Installation: Metal quick connector
IP Class: IP67
Electrical protection: ▪ Reverse polarity protection ▪Over voltage ▪ Short circuit
Housing material: SUS304
Display: LCD optional (ILAC/TAF) Test report - Standard calibration laboratory (TAF accreditation：3032, compliant with ISO/IEC 17025) TAF has mutual recognition arrangement with ILAC MRA
