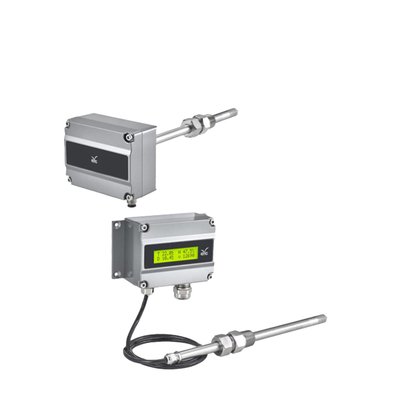

THM86/87 Industrial Grade Multifunction Dew Point Transmitter
- Warehouse / crisper / agriculture / food industry applications.
- Industrial process / air conditioning / environmental ventilation control applications.
- Temperature and humidity measurement in hospital / pharmaceutical industry / textile industry.
- Building/factory/clean room/Laboratory/weather station applications
- Physical Output parameters and measurement range adjustable
Technical Properties:
- Brand / Origin: eYc-Tech / Taiwan
- Product Type: THM86/87
- THM86: Channel Type
- THM87: Split (Rmote) type 2 Meter Cable
- Input Sensor: Capacitive Humidity Sensor & Pt100Ω
- Measuring Range: Temperature: -50 ... 80 ° C;
- Dew point: -50 ... 60 dp ° C ;
- Freezing point: -45 ... 0 fp ° C
- Accuracy (at 25°C): Temperature: ±0.15°C ±0.002°C x tactile; dew point：±3dp°C±(0.02%FS/°C)
- Heat. body effect:(at +25°C):0.02% FS/°C
- Output: 0 ... 20mA / 4 ... 20mA / 0 ... 1V / 0 ... 5V / 0 ... 10V
- Signal Connection: 3 wire
- Load Resistance: current output max. 500 Ω / voltage output min. 10 KΩ output calibration (Zero and Span): software
- Power Supply: 8...35V / 12...30V
- Protection class: housing IP65 (probe: IP20)
- Additional option (ILAC / TAF) Test report - Standard Calibration laboratory (TAF Accreditation: 3032)
