Diaphragm Solid Level Switches

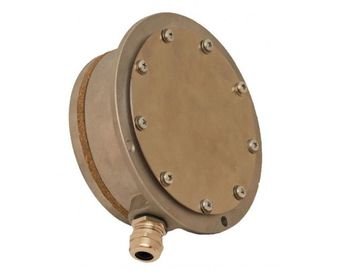

Solid Level Switch

A Diaphragm Solid Level Switch is mounted on the tank's side wall. The diaphragm applies pressure when the granular material in the tank reaches the diaphragm solid level switch. This pressure forces the diaphragm back, allowing it to make contact. Diaphragm solid level switches can be utilized in both pressurized and unpressurized tanks. It is one of the most cost-effective methods of measuring solid levels.

Application areas:

  • Food Sector: Sugar, Hazelnuts, Seeds, Coffee, Wheat, Legumes, Grain, Fish Feed, Corn, Rice
  • In the Construction Industry: Clay, Various Granules, Sand, Gravel, Insulation Materials, Bauxite, Ceramics

Technical Properties:

  • Product Code: RST- LZ11
  • Mounting Type: Vertical
  • Contact Output: 1 x SPDT 15A/250VAC
  • Body Material: Fiber reinforced plastic
  • Diaphragm Material: Neoprene, Viton or AISI 304 Stainless Steel
  • Operating Temperature: -20…+80C Neoprene, -20…150 Viton, -20….+200 Stainless Steel
  • Working Pressure: Max. 3 bar 1 Bar for stainless steel
  • Protection Class: IP40
