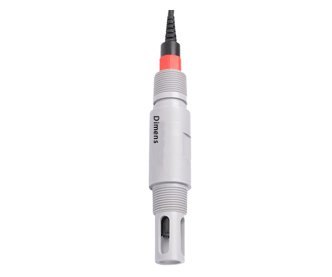

Dimens 420 Dissolved Oxygen Sensor

Dimens 420: The Ultimate Dissolved Oxygen Sensor

Discover the Dimens 420 Dissolved Oxygen Sensor: Perfect for Water Applications

Applications: Surface water, sewage treatment, and water plant farming.

Features: Prepare for accurate measurements with easy assembly and maintenance. Ensure tight connections for reliable results.


  • Type: Polarographic Dissolved Oxygen Electrode
  • Material: Stainless steel, PEEK, silicone, NBR
  • Measuring Range: 0-20 ppm
  • Operating Temperature: 0-60°C
  • Pressure: 0-4 bar
  • Flow Rate: Minimum 0.03 m/s
  • Cable Length: 5m
  • Protection Class: IP68

Enhance your water quality monitoring with Dimens

Proper Setup Steps:

  1. Unscrew the dissolved oxygen membrane cap from the electrode column.
  2. Rinse the internal cathode/anode with distilled water, then dry it.
  3. Add the provided solution to the cap and attach it to the column; don't worry if some spills during assembly.
  4. Secure the cap tightly, ensuring the cathode aligns with the membrane (no folds or tears).
  5. Rinse the electrode, place it in the sheath, and prepare for use. Note: After the first use or membrane replacement, polarization is necessary and takes about 15 minutes."
