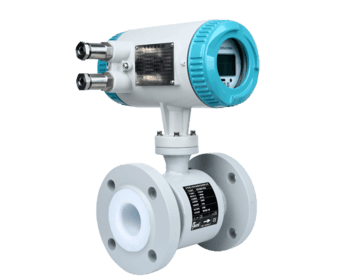

Dipping Type Electromagnetic Flowmeter

Electromagnetic Flow Meter | All Flowmeter Types

Dipping Type Electromagnetic Flowmeters are one of the most preffered products in flow measurement with condition that conductive of the fluid. Because of absence of moving parts in the flow tube or flow system, can be selected from fluid will not erode materials of wet parts and measuring electrodes, is zero lost of pressure and shows excellent performance is preferred in many areas. Electromagnetic flowmeter calculate instant and total passing flow amount from line is connected. Flow values are also transferred to environmental systems with electrical signals.

Application Areas

  • Treatment Plants
  • Chemical, Petrochemical Sector
  • Food Sector
  • Textile Sector
  • Paper Production Sector
  • Plants
  • Water Distribution Networks
  • Agricultural Irrigation Sector

Technical Properties

  • Pipe Diameter: DN100-DN3000mm (4”~120”)
  • Accuracy: ±1.5% of reading, speed > 0.3 m/s
  • Conductivity: Normal liquid > 5 µS/cm, water > 20 µS/cm
  • Protection Class: IP65 (Compact Type), IP68 (discrete Type)
  • Supply Voltage: AC85 ~ 250V, DC20V ~ 36V
  • Power consumption: <15W
  • Communication: RS485/Modbus, Hart over 4~20 mA, Hart, Profitbus
  • Menu Language: English, Turkish
  • Display: LCD Display, 128X128mm, Three lines, 4 built-in programming buttons
  • Ambient temperature: -25 ~ +60 ℃ / -77 ~ 140 ℉ Sensor, -10 ~ +60 ℃ Transducer
  • Relative humidity: 5%~95%
  • Liquid Temperature: -20℃ -80℃
  • Fluid Velocity: 0.1 m/s ~ 15 m/s
  • Working Pressure: ≤1.6 MPa
  • Signal Output: 4 ~ 20 mA, Pulse
  • Housing Material: Aluminum
  • Electrode Material: SS316L, Hastelloy C, Hastelloy B, Titanium Tantalum, Platinoiridium, Stainless Steel Coated, Tungsten carbide
  • Body Material: 304 rust. Chel. 316 Pass. Steel
