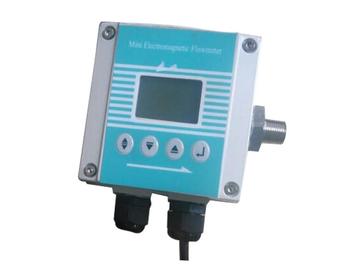

Mini Type Electromagnetic Flow Meter

Mini Type Electromagnetic Flow Meter

Mini Type Electromagnetic flowmeters are an extremely compact, low cost, inductive magnetic flowmeter (internal transmitter and sensor) an excellent solution for measuring conductor flow. It is used in applications where reliability and low pressure loss are required.

Flowmeter Application Areas

  • Food and Beverage industry
  • That
  • Soft drinks
  • Milk and Dairy Products
  • Fruit juices and other fibrous liquids
  • Chemical Process Control industry;
  • Cooling systems and cooling circuits
  • Pharmaceutical Dosing system
  • Plumbing applications;plant construction
  • Automatic Animal Feeding Systems (such as calves, pigs and chickens)
  • Flow or temperature monitoring
  • Mechanical Engineering


Technical Documents
PDF l Technical Specifications
PDF l User Manual
PDF l Connection Diagram

Flowmeter Technical Specifications

Connection Diameter: DN3, DN6, DN10, DN15
Accuracy: ±0.5% of reading
Conductivity: Normal liquid> 5 µs / cm,
Protection Class: IP65
Electrode: SS316L
Power Supply: AC85 ~ 250V, DC20V ~ 36V
Power Consumption: <10W
Display: LCD Display, 128X128mm Three line 4 internal programming keypad
Relative Humidity: 5% ~ 95%
Ambient Temperature: -10 ~ 55 °C
Fluid Temperature: -10 ℃ ~ 60 ℃
Fluid Velocity: 0.1 m/s ~ 15 m/s
Communication: RS232 / RS485 MODBUS
Nominal Pressure: 1.6 Mpa
Language: English, Turkish
Material: Peek
Straight Pipe: Inlet Way ≥ 5D Exit Way ≥ 3D
Signal Output: 4 ~ 20 mA, pulse
Connection: 1/2 NPT, BS
