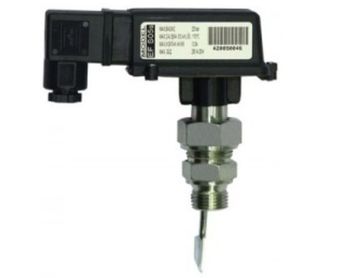

Flow Switch

Flow switches are products that signal whether there is flow in the pipes or not. Flow switches are reliable products that detect the movement of flow in the pipe and give a signal. The flow switch is preferred in system lines that are not wanted to operate without liquid and may be damaged if there is no liquid flow, or in processes where the system should not operate if there is no liquid flow.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Model : RST-FS05s
• Body Material : 316 SS
• Flow Sensing Material : 316 SS
• Maximum Temperature: 110 C
• Maximum Pressure : 25 bar
• Electrical Connection : Socket DIN 43650 C
• Protection Class : IP 65
• Process Connection: R1/2" Male
• Set Point : for DN50... DN 150 in Increased Flow
• Electrical Output : Reed Contact, 26 VA / 20 W
• Maximum : Current : 0.5 A (Should be used with at more high currents)
• Maximum Supply : 230 VAC, 48 VDC
