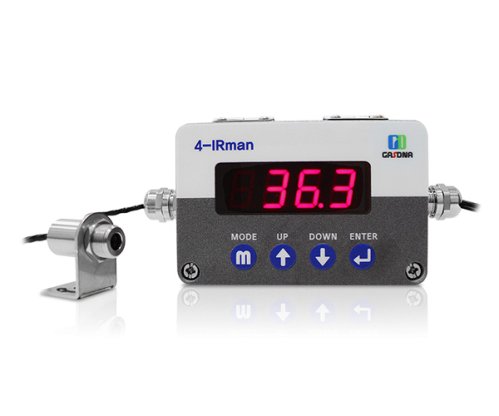

Infrared Thermometer 4-IRman

Explore the Versatile Features of Advanced 4-IRMAN Non-Contact Infrared Thermometer

The cutting-edge 4-IRMAN infrared thermometer is meticulously designed to measure and convert the precise infrared energy emitted by objects, providing accurate standard signal output (4 ~ 20mA) and efficient RS-485 communication. It also offers responsive alarm relay contact output and convenient external laser control.

Comprising a sensitive infrared sensor and advanced signal processing module, the 4-IRMAN enables real-time field measurements. With its extensive temperature range (-60°C to 380°C) and versatile adjustable settings, it ensures exceptional measurement accuracy. Thanks to its sophisticated optical lens, it guarantees high measurement accuracy, even at an extended distance (12:1 optical resolution). Emissivity can be finely adjusted from 0.10 to 1.00.

Applications span a wide range of industries, including versatile plastics, crucial fluids, resilient rubber, protective coatings, vital paper, enduring asphalt, resilient ceramics, sturdy wood, diverse fabrics, reliable glass, and sensitive food. Unleash the full potential of the advanced 4-IRMAN for all your precise temperature measurement needs.

Technical Properties:

• Measured Range: -60~400℃
• Detection Method: Thermopile
• Accuracy: ±1℃/F.S or 1℃
• Error Range: ±1%
• Field of View (D:S): 10:1
• Wavelength Range: 8~14㎛
• Response Time: Less than 100msec
• Emissivity: 0.10~1.00
• Analog Output: 420mA, 15V (option)
• Communications Output: RS-485 Communications
• Relay Output: 2 step – Relay Contact (AL1/AL2)
• Power: DC 20~24V (Max 200mA)
• Operating Temperature: 0~70℃
• Resolvable Temperature: 0.1℃
• Relative Humidity: 5~90%
• Storage Temperature: -30~85℃
• International Protection: IP65, NEMA 4
• Laser Pointer: 630~670nm (red) (option)
• Size: Body Control (98x64) / Sensing Head (27xø10)
• External Material: SUS
• Weight: 285g
• Cable Length: 3M, other
