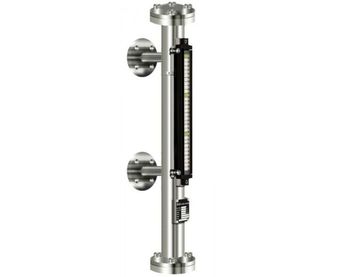

Magnetic By-Pass Level Indicator

Working Prenciple
Magnetic Level Indicator; level inside body of the magnetic level indicator is same level inside tank according to method of composite containers.Magnetic float is available at body of magnetic level indicator.This magnetic float moves up and down together with liquid.Flaper in outer surface of magnetic level indicator shows situation of the level by return from red to white or from with to red with move up and down of the float. Level easily observable from the outside thanks to different two color of Flaps.

• Machine – Boiler
• Food
• Chemical
• Heating – Cooling
• Ship – Yacth
• Measurement of Liquid Level of Factory

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Application Areas: Liquids

• Mechanical Connection: Gear 1/2", 3/4", 1”, DN15, DN20, DN25

• Distance Between Connection Flanges : Should be noted in the order.

• Withstand Temperature: 200°C Max. (300 C optional)

• Body Material: Stainless Steel

• Indicator Body: Aluminum

• Indicator: White Red Flap

• Withstand Pressure: 16 Bar (Optional: 25 Bar, 40 Bar and 100Bar)

• Pipe Diameter: 60,3mm

• Float Diameter: Ø 54 mm
