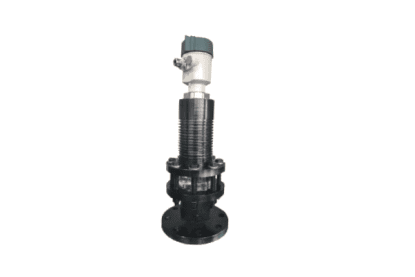

80G High Temperature and High Pressure Type Transmitters

High Temperature and High Pressure Type Transmitters

Product Features

  • To produce a more compact radio frequency architecture, a self-developed millimeter-wave radio frequency chip is used.
  • Increased signal-to-noise ratio, virtually unaffected by level variations;
  • The measurement accuracy is millimeter-level (1mm), suitable for metrology-level measurements.
  • The measurement blind region is tiny (3cm), which improves the effect of measuring the liquid level of small storage tanks.
  • The beam angle can approach 3°, and the energy is more focused, reducing false echo interference.
  • With a low dielectric constant (1.5), a high frequency signal can efficiently measure the level of medium.
  • Strong anti-interference performance, virtually unaffected by dust, steam, temperature, or pressure variations;
  • The antenna's lens is made of PTFE, which is an anti-corrosion and anti-hanging material.
  • It offers remote debugging and remote update, which reduces waiting time and improves work efficiency;
  • it supports mobile phone Bluetooth debugging, which is suitable for on-site personnel's maintenance work.

Technical Properties

Model No.DN 80800DGWGY

  • Frequency range:76~81GHZ
  • Application:Various high temperature and high
  • pressure vessels (solid, liquid)
  • Measuring range: Max.120m
  • Process connection:Flange,Thread
  • Media temperature:-40~1000°C
  • Process pressure:-1~15mpa
  • Accuracy:±1mm
  • Launch Angle:
  • Protect grade:IP67
  • Ex-proof grade: EXib||C T6 Gb
  • Shell material:Aluminum Alloy/Stainless steel
  • Output:4~20mA/HART (TWO-WIRE/FOUR
