Non-contact Level Measurement Transmitter

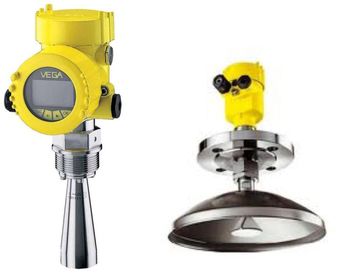

Vegapuls 68-SR Radar Type Level Transmitter

Application Areas

The VEGAPULS SR 68 sensor is ideal for detecting continuous levels of bulk materials, even under extreme measuring conditions. It is an excellent choice for measuring fill levels in large hoppers and high silos. The product is straightforward to use. It does not require any upkeep. With these features and quality, the VEGAPULS SR 68 is a cost-effective choice.

It delivers high system availability and reliable measurement since it is not impacted by steam, dust, or noise because it is wear-free and maintenance-free.

Technical Documentation

  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme

Technical Properties

  • Measurement Range: up to 75 mt.
  • Process Connection: G 1 ½”, 1 ½” NPT, DN50 Flange or 2”
  • Process Temperature: -200….+450C
  • Process Pressure: -1….+160 Bar
  • Measurement Precision: +/- 2 mm
  • Signal Output: 4-20mA + Hart
