Radar Level Transmitters 80G

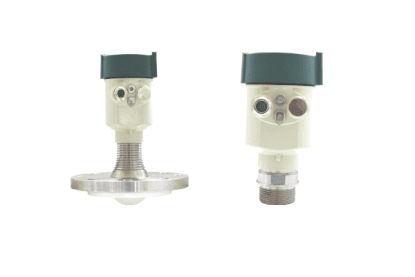

Reliable Radar Level Transmitters

Product Features

  • To produce a more compact radio frequency architecture, a self-developed millimeter-wave radio frequency chip is used.
  • Increased signal-to-noise ratio, virtually unaffected by level variations;
  • The measurement accuracy is millimeter-level (1mm), suitable for metrology-level measurements.
  • The measurement blind region is tiny (3cm), which improves the effect of measuring the liquid level of small storage tanks.
  • The beam angle can approach 3°, and the energy is more focused, reducing false echo interference.
  • With a low dielectric constant (1.5), a high frequency signal can efficiently measure the level of medium.
  • Strong anti-interference performance, virtually unaffected by dust, steam, temperature, or pressure variations;
  • The antenna's lens is made of PTFE, which is an anti-corrosion and anti-hanging material.
  • It offers remote debugging and remote update, which reduces waiting time and improves work efficiency;
  • it supports mobile phone Bluetooth debugging, which is suitable for on-site personnel's maintenance work.

Parameters

  • 76GHz-81GHz FM wave radar
  • 5GHz ultra-large FM scanning frequency width, wide application
  • Support standard HART, RS485/MODBUS protocol
  • Support operation methods such as PC setting software, tank side meter, etc.
  • 24VDC power supply
  • Simple installation structure, adapt to various installation forms on site

Conventional Small Lens80G

Model No.:DN80-800CX(Flange below
DN80)
Frequency range:76~81GHZ
Application:Slightly corrosive liquid,
stirring, condensation
Measuring range:Max.120m
Process connection:Flange,Thread
Media temperature:-40~120°C
Process pressure:-0.1~0.3mpa
Accuracy:±1mm
Launch angle:5°
Protect grade:IP67
Ex-proof grade:EXib||C T6 Gb
Shell material:Aluminum Alloy/Stainless
steel

Corrosion Large Lens Flat Type Model

No.DN80-800FD-P-Hgh

Frequency range:76~81GHZ
Application:High temperature
environment, strong corrosive liquid,
stirring, water vapor condensation
Measuring range:Max.120m
Process connection:Flange,Thread
Process temperature:-40~220°C
Process pressure:-0.3~2.0mpa
Accuracy:±1mm
Launch angle:3°
Protect grade:IP67
Ex-proof grade: EXib||C T6 Gb
Shell material:Aluminum
Alloy/Stainless steel
Output:4~20mA/HART (TWO-WIRE/FOUR WIRE)/RS485)
