Smoke Detector TSS8030R

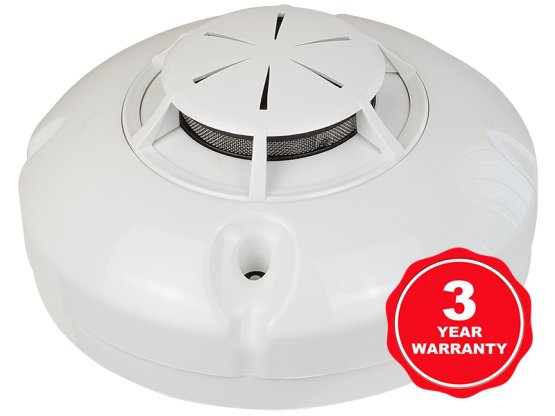

Industrial Smoke Detector TSS8030 Supplier

TSS8030R is a smoke detector engineered for early fire detection. It triggers an alarm upon detecting a predefined smoke concentration. It operates by disrupting infrared rays as smoke particles enter its optical chamber, and its sensitivity comes pre-set at the factory.

This fire detector is controlled by a microprocessor, which employs an advanced algorithm to self-compensate for chamber contamination. Equipped with a relay output, it can interface with controllers using digital inputs in "dry contact" mode.

Key Features:

  • Smoke sensitivity complies with EN 54-7:2000+ A1:2002
  • Utilizes digital signal processing
  • Very low current consumption
  • IP30 ingress protection
  • Outstanding long-term stability
  • Features LED indicators for status updates


  • Smoke detection in server rooms and data centers
  • Alerting in the event of fire conditions
  • Integration with Building Management Systems (BMS)
  • Monitoring smoke detection in mobile operator facilities

This detector is compatible with various systems, including the TCW241 Ethernet IO module, TCW220 Ethernet data logger, TCW122B-CM Remote IO module, TCG120-4 GSM-GPRS remote monitoring controller, TCW181B-CM Ethernet digital IO module, TCW122B-WD IP watchdog monitoring module, TCW112-CM Remote environmental monitoring module, and TCW112-WD IP watchdog relay board.

Technical Properties:

  • Supply voltage range: 10 to 30 VDC
  • Maximum supply current:
  • Smoke sensitivity
    complies with:
    EN 54-7:2000+ A1:2002
  • Time to enter Duty mode after power supply is on: up to 40s
  • Reset time: 2s
  • Time to enter Duty mode after reset up to: 40s
  • Protected area circle with diameter: 15 m
  • Height of mounting up to: 11 m
  • Operating temperature range: -10 to +55 °C
  • Operating humidity resistance: (93 ± 3)% at 40°C
  • Dimensions: Ø100 mm, h 47mm
  • Weight: 0,100 kg
  • Cross section of the connecting wire: 0.8 to 1.5 mm²
