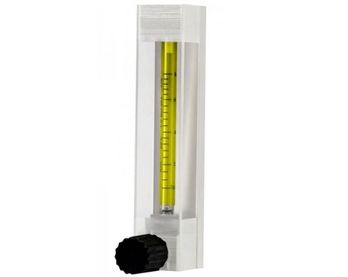

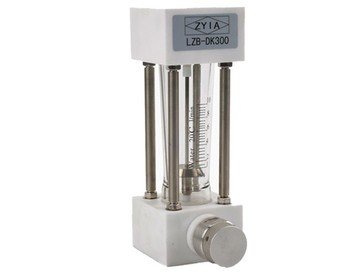

Setting Valve Glass Tube Flow Meter

It measures to flow amounts of air, gas, and liquids mechanically. Measurement tube is glass. It is attached to flow line vertically. It determine flows of gas and liquids and is used to make adjustment.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Mechanical Connection: ¼”
  • Flow Range for Air: 0.1 – 1,3 L/H ile 430 – 4300 L/H
  • For Liquid: 0.002 – 0.02 L/H - 16 – 160 L/H
  • (Please consult to our engineer friends for flow range you need )
  • Precission: %3 F.S
  • Maximum Temperature: 100C
  • Maximum Pressure: 10 Bar
  • Adjestment Valve: Stainless Steel
  • Measurement Tube: Glass
  • Oring: Viton
  • Vana: Adjustable sensitive valve
