Side Mounted Magnetic Level Switch

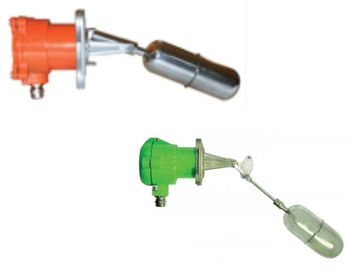

Magnetic Level Switch

Working Prenciple

Side-mounted magnetic level switch are mounted to top level of more tanks.It is used to take overflow alarm or tank full information.It shows excellent performance in heavy conditions and critical points be resistant to high temperatures also be microswitch within its.Is used in ship sector, hot water boiler, treatment plants, oil tanks, dirty-clean water tanks and acid tanks. It does not require external power supply.

Because of high temperature, pressure and electrical resistance provide excellent performance at critical point. Used in liquids having a wide range of concentrations.

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Application Areas: Liquids
  • Mechanical Connection: 92 X 92 Square Flange
  • Electrical Connection: 250 Volt AC 15 Amper NA/ NK Contact
  • Withstand Temperature: 150°C
  • Wet parts: 316 SS Stainless Steel
  • Withstand Pressure: 25 Bar ( Max),
  • Connection Type: horizontal
  • Protection Class: IP 65
