AAlborg DPC Mass Flow Control Device

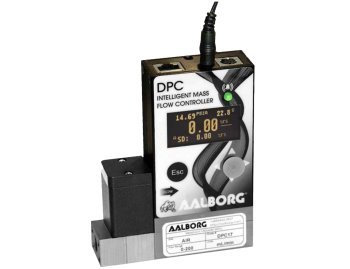

Reliable Mass Control Device, All Flowmeter Types

Aalborg Instruments' DPC series precision digital mass flow controllers, provide accurate and stable control of the mass flow rate of process gasses. It Supports native simultaneous display of Mass Flow, Volumetric Flow, Pressure and Temperature parameters. Also supports scientific and analytical applications in various industries, such as bioreactors and surface deposition.

AALBORG DPC series supports displaying of differential pressure mass flow controller features batch processing mode, collector flow rate with ±(0.5% RD + 0.2% FS) standard accuracy, 200:1 measurement and control ratio and less than 150 ms sampling time.

Working Principle of AAlborg DPC Mass Flow Control Device

The operation of DPC mass flow controllers is based on measuring differential pressure across specially designed restrictive flow elements (RFE). The restrictive flow element is designed to create laminar flow over the entire operating range of the device, from 0% to 133% of the full scale range. A high-accuracy and high-resolution differential pressure sensor is used to measure the pressure drop across a laminar flow channel that is linearly proportional to the volumetric flow rate. Based on data from sensors and gas properties in the device's internal gas database, the microcontroller calculates volumetric and mass flow; these, along with pressure and temperature parameters, are available on the device display and via the RS digital interfaces.

Technical Properties

  • Brand / Model Aalborg / DPC07, 17, 37, 47, 57, 67, 77
  • Fluid Type: Up to 90 different gases and 5 different gas mixtures
  • Analog Output 4 - 2mA, 0 - 5 VDC, 0-10 VDC
  • Vlaf External Control Signal 4 - 2mA, 0 - 5 VDC or 0-10VDC
  • Accuracy ±0.5% RD +0.2% FS
  • Sampling Time 150 mS
  • Ambient temperature 0….50°C
  • Measurement Ratio 200:1
  • Supply Voltage 12 - 26Vdc 650mA
  • Fluid Contact Surface Material. Aluminum ceramic or 316L Rust. 416 passes. steel, polyamide
  • Operating temperature -10…60°C
  • Indicator O LED
  • Pressure DPC07,17,37,47,57, 67, 77: 120 PSIG max
  • Maximum Controllable Flow 133 %
  • Measurement Range 0.5 -50 sml/min to 0-1000 sL/min
  • Line Diameter 1/8" - 3/4"
  • O-Ring Buna-N, Viton EPR PTFE / Kalrez
