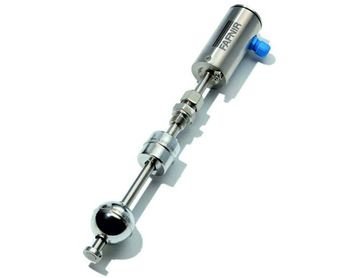

Torrix Level Transmitters

Advanced Liquid Level Transmitters by Torrix

Torrix Level Transmitters find essential applications in a wide range of industries, including chemical, petrochemical, liquid gas, pharmaceutical, laboratory, offshore, shipbuilding, power plants, energy systems, mechanical engineering, and process and drinking water treatment. These versatile transmitters provide reliable liquid level monitoring solutions, ensuring precision and safety in diverse environments. Whether in the harsh conditions of a petrochemical plant or the precise demands of a laboratory, Torrix Level Transmitters deliver accurate and dependable performance across industries.

Technical Specifications:

  • Brand/Origin: Fafnir (German)
  • Process Connection: Threaded Connection or Flange
  • Protection Class: IP68
  • Probe Head Material: Stainless Steel 303 (Option: Stainless Steel 316)
  • Cable Terminal: M16
  • Probe Material: Stainless Steel 316 Ti (Options: Hastelloy, Titanium, Tantalum)
  • Pipe Diameter: 12mm
  • Length: 200mm - 6000mm
  • Accuracy: Fill Level ± 0.5 mm or ± 0.025% (Optional: ±0.3mm or ±0.01%)
  • Resolution: (HART®) 0.1 mm
  • Signal Output: 4-20 mA / HART® 2-wire (Ex-proof optional)
  • Voltage: 8-30 Volt DC
  • Temperature: -40°C to 125°C (Options: -40°C to +250°C, -40°C to +450°C, -65°C to +125°C)
  • Pressure: 120 bar Max (Optional: 200 Bar)
