Dimens 6800T-5 Low-Range Online Turbidity Analyser

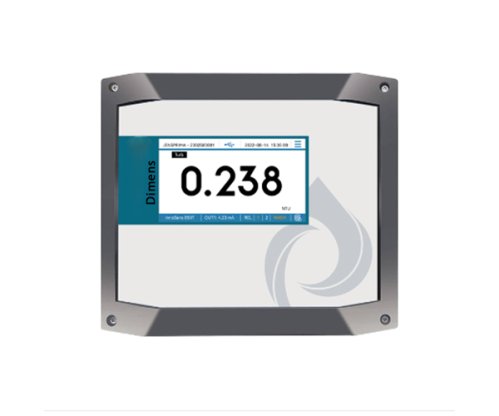

Low-Range Turbidity Analyzer - Precision in Action

Specifications:

  • Turbidity: 0.0001 - 100 NTU

Applications: Ideal for use in drinking water, boiler water, process water, and swimming pools.

Controller Features:

  • 90° scattered light principle in accordance with ISO 7027
  • Easy installation with bubble elimination tank
  • Anti-condensation function for high-accuracy measurement
  • Wide power input, touch screen design
  • Large backlit LCD display showing measured values, temperature, and relay status
  • Chinese/English menu for easy operation
  • Password protection to prevent unauthorized operation
  • New calibration step-by-step prompts to reduce operational errors
  • 2 x programmable Hi/Lo relay outputs
  • Programmable auto-purge relay outputs
  • 2 x isolated 4-20mA outputs
  • RS485 Modbus RTU communication
  • Data storage capability with USB stick export support
  • Display: 4.3" color LCD touch screen display
  • Language: Chinese/English
  • Password: Setting mode: 0022, Calibration mode: 0011
  • Power supply: 110-240VAC, 50/60Hz.
  • Current output 1: Isolated 4-20mA output, settable measurement value, maximum load 500Ω
  • Current output 2: Isolated 4-20mA output, settable measurement value, max. load 500Ω
  • Digital communication: RS485 Modbus RTU
  • Alarm output: 2 sets of programmable Hi/Lo contacts with hysteresis setting
  • Purging relay: 5A/250VAC/30VDC, Cleaning interval: 0.1-1000h, cleaning time: 1-1000s
  • Operating temperature: 0~70.0°C
  • Storage temperature: -20~70.0°C
  • Protection level: IP65
  • Mounting: Wall-mounted
  • Dimensions: 200 x 180 x 90mm
  • Weight: Approximately 1kg

SENSOR - Dimens 850T Low Range Turbidity Sensor: The Dimens 850T low-range turbidity sensor is designed for ultra-low-range turbidity measurements with high accuracy. It features an internal defoaming structure and anti-condensation function to ensure stability. The long-lasting LED light source eliminates the need for frequent replacements, making it suitable for online monitoring in clean water applications such as tap water outlets and engineering drainage outlets.

Sensor Specifications:

  • Product Type: Dimens 6800T-5
  • Measurement Principle: 90° scattered light
  • Measurement Range: 0.0001-100 NTU
  • Resolution: 0.0001/0.001 NTU
  • Accuracy: ±2% of reading or ±0.02 NTU, whichever is greater
  • Light Source: LED
  • Response Time: <30s
  • Inlet Water Flow: 100-200ml/min
  • Operating Temperature: 0-50°C
  • Protection Level: IP65
  • Installation: Wall-mounted
  • Size: 160x260x150mm
  • Weight: Approximately 2kg
