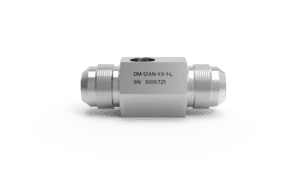

Trigas Turbine Flowmeter DM-12 | 0,9 l/min to 95 l/min
Demanding measurements are best handled by turbine flow meters. Turbine flowmeters from TrigasDM are created specifically for these types of solutions if you require features like the ones listed below:
- High precision
- Quick response times
- Compact style
- Superior dependability during continuous operation
- Variable flow changes
- Varying viscosity and operation temperatures
These types flowmeters can be used for a wide range of applications for professional works like:
- monitoring the flow rates of fuels coolants or lubricants used in engine and engine construction
- dosages in the food and beverage industry
- pharmaceutical industry
- monitoring and measuring ultrapure water during research.
Technical Properties
- Linear Flow Range: 7,6 l/min to 90 l/min (2 GPM to 23.8 GPM)
- Extended Flow Range: 0,9 l/min to 95 l/min (0.24 GPM to 25.1 GPM)
- Operating Pressure: up to 410 bar
- Pressure Loss (at 70% linear flow): 0,64 bar
- Temperature Range: -270°C to 400°C (-454°F to 752°F)
- Response Time: <3 ms
- Calibration Accuracy: ≤±0,03% of measurement
- Repeatability: ≤±0,05% of measurement
- Linearity in Linear Flow Range: ≤±0,5% of measurement
- Linearity with Linearizer: ≤±0,1% of measurement
- K-Factor: 1260 Impulse/l
- Max. Frequency: 2000 Hz
- Housing and Turbine Material: Stainless Steel
- Ball Bearing Material: Ceramic bearings, Steel cage
- Weight: 383 g
- Inner Diameter: 14,3 mm
- Length: 82,6 mm
- Connection: AN threaded connection
- Connection Size: ¾“
- Connection Thread: 1-1/16“ -12UNJ-3A
- Prefiltration: 10µ (Recommended)
- Inlet: 143 mm (Recommended)
- Outlet: 72 mm (Recommended)
- Standard viscosity: 1,3 mm²/s
