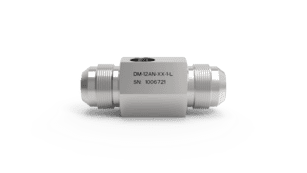

Trigas Turbine Flowmeter DM-14 | 1,7 l/min to 180 l/min

Turbine flow meters are the ideal solution for demanding measurements. If you need features such as these below, turbine flowmeters from TrigasDM are produced exactly for thise types of solution:

• High accuracy
• Very fast response times
• Compact design
• High reliability in continuous operation
• Fluctuating flow changes
• Varying operating temperatures/viscosity

These types flowmeters can be used for a wide range of applications for professional works like:

• monitoring the flow rates of fuels coolants or lubricants used in engine and engine construction
• dosages in the food and beverage industry
• pharmaceutical industry
• monitoring and measuring ultrapure water during research.

Technical Properties

• Linear Flow Range:17 l/min to 170 l/min (4,5 GPM to 44,9 GPM)
• Extended Flow Range:1,7 l/min to 180 l/min (0,45 GPM to 47,5 GPM)
• Operating Pressure: up to 350 bar
• Pressure Loss (at 70% linear flow): 0,44 bar
• Temperature Range: -270°C to 400°C (-454°F to 752°F)
• Response Time: <3 ms
• Calibration Accuracy: ≤±0,03% of measurement
• Repeatability: ≤±0,05% of measurement
• Linearity in Linear Flow Range: ≤±0,5% of measurement
• Linearity with Linearizer: ≤±0,1% of measurement
• K-Factor: 460 Impulse/l (1730 Puls/gal )
• Max. Frequency: 1400 Hz
• Housing and Turbine Material: Stainless Steel
• Ball Bearing Material: Ceramic bearings, Steel cage
• Weight: 380 g
• Inner Diameter: 18 mm
• Length: 80 mm
• Connection: AN threaded connection
• Connection Size: ¾“
• Connection Thread: 1-1/16“ -12UNJ-3A
• Prefiltration: 10µ (Recommended)
• Inlet: 143 mm (Recommended)
• Outlet: 72 mm (Recommended)
• Standard viscosity: 1,3 mm²/s
