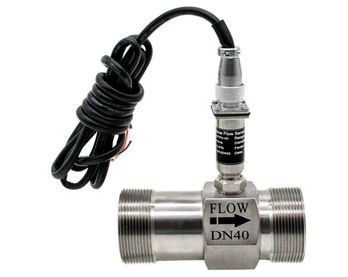

Stainless Steel Gear Type Turbine Flowmeter

Applications

Water treatment industry, textile sector, drinking water and source water production sector, liquid filling machines, water distribution, processing and manufacturing industry, filtration systems, chemical production sector, cold water monitoring, swimming pools, pomp protection

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

Technical Properties

• Type: TDSSD.XX. XX.P.10.S.S.N.N

• Temperature: -20....+ 120°C

• Connection Measurement: Between DN15 and DN50

• Measurement Range: 0,6 – 4,5 L/min - 33 – 335 L/min

• Precision: 1 %

• Protection Class: IP65

• Sensor Body: 304 Stainless Steel

• Rotor Shaft: Tungsten Carbide

• Supply Voltage: 5 – 24 Volt DC

• Output Signal: Puls Push-Pull (4-20mA optional)

• Mounting Position: Horizontal and Vertical (up)

• Pressure: 63 Bar
