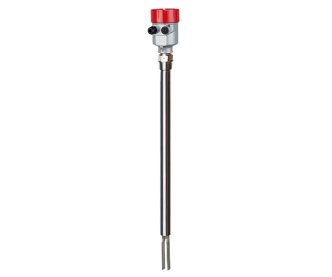

Vibrating Fork Type Level Switches DMS VBR

Vibrating Fork Type Level Switches DMS VBR

DMS VBR level switches are designed for universal use with powders and fine-grained solids. The level switch properly detects the minimum or maximum limit level. The vibrating fork is well-suited for use in sticky and corrosive conditions, as well as with very low density bulk items


  • Multiple process connections
  • No calibration required
  • Mounts above or next to storage containers
  • Minimum maintenance cost thanks to robust structure
  • Minimum time and cost thanks to simple configuration without media
  • Reliable operation thanks to product switching point

Technical Properties

  • Operating Voltage: Auto Adaptation 20-35V DC; 30-250V AC
  • Power Consumption: 1.5W Max
  • Isolation Voltage: 1500V Min
  • Overvoltage protection: CAT III
  • Output: Realy DPDT
  • Output capacity: 250VAC, 3A; 30VDC, 1A
  • Delay time: 0-30s adjustable
  • Switching delay: <1.0s
  • Electrical connections: M20X1.5
  • Ambient temperature: -40 to +70 C
  • Process temperature: -40°C....250°C
  • -40°C....150°C for VC
  • Process pressure: -0.1...2.5MP
  • -0.1..0.6 MPa for VC
  • Process fitting: Threaded 1 1/2’’ BSPT(VS thread is 1’’ BSPT)
  • Material Probe: SUS 304/316L
  • Measuring range: Max.4m ( cable type 10m.)
  • Frequency: 160 Hz
  • Density of liquid: 0.01g/cm3
  • Protection class: IP67
  • Material of housing: Aluminum SUS 304
