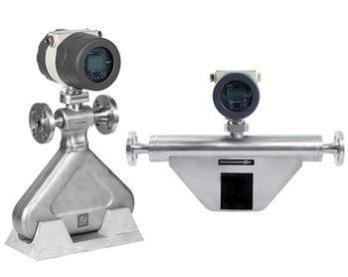

Coriolis Mass Flow Meter

FCKD Mass Flow Meters, Flowmeter Types, Flowmeters

Coriolis Mass Flowmeter is preffered measurement with high precision to flow and due to measure indepently from some process values.

Coriolis Use Advantages

  • It does not require special installation.
  • It does not require maintenance because of lack of moving parts.
  • Make independent measurements from specific gravity.It does not require straight line.
  • Make measurement direct mass, intensity and temperature measurement.It does not require pressure compensation and temperature compansation.
  • It is very easy to choose the right product.
  • It does not need to choose the inner coating material.
  • The choice of electrode material is not necessary.
  • There is no need to conductivity value.
  • Many parameters measured with a single device.
  • Corrosion resistance should be considered for only fluid.
  • It provides excellent performance compared with the electromagnetic flowmeter and other flow measurement devices


  • Very high precision
  • Direct mass flow measurement
  • Liquid, sludge and gas measurement possibility
  • Can be designed between 0.03 kg/h - 1,500,000 kg/h (0.07 lb/h - 3,300,000 lb/h) for flow measurement

Technical Documentation

Technical Properties

  • Precision: % 0,5-0,2 -0,1 O.D.
  • Body: AISI316
  • Output: 4-20 mA and Puls
  • Mounting Position: Horizontal and Vertical (up)
  • Supply: 24 V DC or 230VAC
  • Connections: Flange (you ask for other)
  • Sıcaklık: -50°C...125°C (350°ops)
  • Application Areas: Liquids and gases
  • Pressure: 40 bar (63 bar optional)
  • Protection Class: IP67,Exd ib II C T4...T6
  • Density Measurement: 0,2...2 kg/l
  • Communication: RS-485 MODBUS
