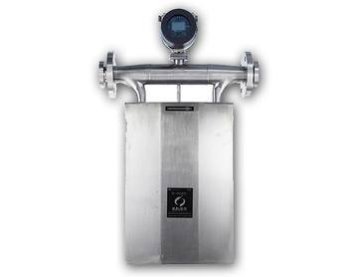

U Type Coriolis Mass Flow Meter

Modern U Type Coriolis Mass Flow Meter, Flowmeter Prices

DMS-KFU U type Mass flow meters are standard high performance products for the process industry. The U-type mass flow meter offers very high accuracy and sensitivity for almost all fluids. It is used in process control in chemical applications, concentration measurements in the food and beverage industry, and transfer, filling and transportation measurements in the oil and gas industry. U type mass flow meter is an optimum device for measuring the flow rate of LNG type gases at low temperatures. It has options suitable for low and high temperatures such as -200… +350 and pressures up to 1000 Bar.

  • U-shaped bent tube design
  • All industries and all processes are used in fluid transfer.
  • Universal measuring principle for liquids and gases
  • Measurement of mass flow, density and temperature in highly variable fluids
  • High measurement Accuracy: typically ±0.2%, ±0.1% or optionally: ±0.05%
  • Ability to make measurements regardless of the physical properties and flow profile of fluids
  • Easy to install
  • No recalibration required after fluid change
  • No straight distance required for mounting
  • It does not require temperature or pressure compensation.
  • It does not require periodic calibration.

Technical Properties

  • Type: DMS-KFU
  • Area of Use: Almost all sectors and all liquids
  • Pipe Diameter: DN3 - DN300
  • Flow Measurement Range: 1kg to 1000 tons/h
  • Connection: ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges
  • Pressure: Max 16 Bar (40 Bar to 1000 Bar optional)
  • Temperature: -50….+150 C(350C opt.)
  • Sensitivity: 0.2/ 0.1/ 0.05% (Liquid), 0.5% (gas)
  • Density: 0.2 to 3.0 g/cm3
  • Repeatability: 0.001 g/cm3
  • Temperature Accuracy: ±1.0°C
  • Protection: IP67
  • Certificates: ATEX, CE, ISO9001, ISO14001, OHSAS18001
  • Communication: RS485 (RTU Modbus), HART (-HART option)
  • Pulse Output: 0 to 10 kHz
  • Current Output: 4-20mA
  • Supply Voltage: 24VDC, 220VAC
