Triangle Type Coriolis Mass Flow Meter

Triangle Type Coriolis Mass Flow Meter, All Flowmeter Types

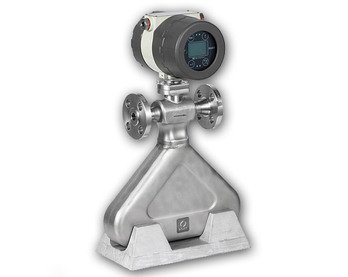

DMS-KF-triangle Triangle Type Mass flow meters are high performance products for the measurement control industry. The triangle type Coriolis flow meter offers very high accuracy and high sensitivity for almost all fluids. It is used in process control in chemical applications, concentration measurements in the food and beverage industry, filling and transportation measurements in the oil and gas industry. Triangle type Coriolis Flowmeter is an excellent choice for measuring the flow rate of LNG type gases at low temperatures. It has options suitable for low and high temperatures such as -200…+350 and pressures up to 1000 Bar.

Triangle shaped bent tube design.
It is used in the transfer and measurement of fluid in all industries and all processes.
It has a universal measuring principle for liquids and gases.
It measures mass flow, density and temperature in liquids and gases with different variability.
It has high measurement precision. It can be manufactured with a standard precision of ± 0.2%, ± 0.1% or optionally ± 0.05%.
It has the ability to make measurements regardless of the physical properties and flow profile of fluids.
It is easy to install.
No recalibration required during fluid changes.
Does not require straight pipe distance for installation.
It does not need temperature or pressure verification.
It does not require periodic calibration.

Technical Properties

Type: DMS-KF-Triangle
Most Common Use: CNG / LNG / LPG
Pipe Diameter: DN10 - DN25
Flow Measurement Range: 0 - 1500kg/h to 0 - 10 tons/h
Connection: ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges
Pressure: Max 16 Bar (40 Bar to 1000 Bar optional)
Temperature: -50….+150 C(350C opt.)
Sensitivity: 0.2/ 0.1/ 0.05% (Liquid), 0.5% (gas)
Density: 0.2 to 3.0 g/cm3
Repeatability: 0.001 g/cm3
Temperature Accuracy: ±1.0°C
Protection: IP67
Certificates: ATEX, CE, ISO9001, ISO14001, OHSAS18001
Communication: RS485 (RTU Modbus), HART (-HART option)
Pulse Output: 0 to 10 kHz
Current Output: 4-20mA
Supply Voltage: 24VDC, 220VAC
