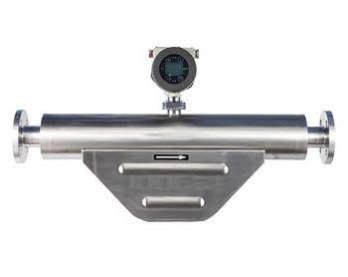

V Type Coriolis Mass Flow Meter

Affordable V Type Coriolis Mass Flow Meter, Seller in Turkey

DMS-KF-V Type Mass flow meters are high performance products for the measurement control industry. The V-type Coriolis flowmeter offers very high accuracy and high sensitivity for almost all fluids. It is used in process control, in chemical applications, concentration measurements, in the food and beverage industry, filling and transportation measurements in the oil and gas industry.

V type Coriolis flow meter is an excellent choice for measuring the flow rate of LNG type gases at low temperatures. It has options suitable for low and high temperatures such as -200…+350 and pressures up to 1000 Bar.

  • V-shaped bent body design
  • It is used in the transfer and measurement of fluid in all industries and all processes.
  • It has a universal measuring principle for liquids and gases.
  • It measures mass flow, density and temperature in liquids and gases with different variability.
  • It has high measurement precision. It can be manufactured with a standard precision of ± 0.2%, ± 0.1% or optionally: ± 0.05%.
  • It has the ability to make measurements regardless of the physical properties and flow profile of fluids.
  • It is easy to install.
  • No recalibration required during fluid changes.
  • Does not require straight pipe distance for installation.
  • It does not need temperature or pressure verification.
  • It does not require periodic calibration.

Technical Properties

  • Type: DMS-KF-V
  • Most Common Use: Applications with high viscosity and high pressure
  • Pipe Diameter: DN10 - DN300
  • Flow Measurement Range: 0 - 1000kg/h to 0 - 1000 tons/h
  • Connection: ANSI, DIN, JIS, or Sanitary Tri-Clamp flanges
  • Pressure: Max 16 Bar (40 Bar to 1000 Bar optional)
  • Temperature: -50….+150 C(350C opt.)
  • Sensitivity: 0.2/ 0.1/ 0.05% (Liquid), 0.5% (gas)
  • Density: 0.2 to 3.0 g/cm3
  • Repeatability: 0.001 g/cm3
  • Temperature Accuracy: ±1.0°C
  • Protection: IP67
  • Certificates: ATEX, CE, ISO9001, ISO14001, OHSAS18001
  • Communication: RS485 (RTU Modbus), HART (-HART option)
  • Pulse Output: 0 to 10 kHz
  • Current Output: 4-20mA
  • Supply Voltage: 24VDC, 220VAC
