TCW122B-RR Remote Relay Control Module

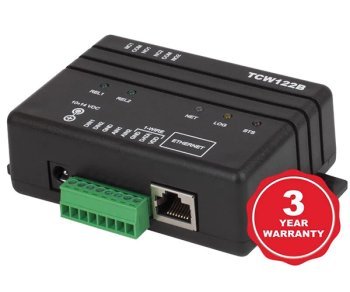

Teracom Remote Relay Control Module Supplier TCW122B-RR

CW122B-RR is a module designed for remote relay control, featuring two digital inputs and two relay outputs, each with both normally open and normally closed contacts.

To establish remote relay control, a pair of devices is required, with one operating in 'client' mode and the other in 'server' mode.

In this client-server model, the 'client' device periodically transmits the status of its digital inputs to the 'server.' In response, the 'server' conveys its digital input status.

This client-server approach offers various configurations:

  1. Both devices are connected to the Internet with public IP addresses.
  2. Both devices are linked within the same LAN, utilizing private IP addresses.
  3. The 'client' is connected to a LAN with a private IP address, while the 'server' is connected to the Internet with a public IP address.
  4. The 'client' is connected to one LAN, and the 'server' is connected to a different LAN, but the 'server' is behind a router with a public IP address and port forwarding.

Key Features:

  • Secure web-based configuration with password protection.
  • 2 digital inputs that can function in either 'dry contact' or 'logic level' mode.
  • 2 relay outputs equipped with both Normally Open (NO) and Normally Closed (NC) contacts.
  • Terminal connectors that are removable and separated for inputs and outputs.
  • Utilizes encrypted communication for added security.
  • Allows for manual or DHCP network configuration.
  • Supports Device ID filtering for enhanced control.
  • Permits remote firmware updates to ensure ongoing functionality.

Use Cases:

  • Remote relay control, whether one-way or two-way.
  • Automation of industrial processes.
  • Implementation in home and office alarm systems.
  • Enabling remote control of electrical devices.

Technical Properties:

  • Physical characteristics
  • Dimensions: 109 x 82 x 32 mm
  • Weight: 110 g
  • Environmental limits
  • Operating тemperature range: -20 to 55°C
  • Storage temperature range: -25 to 60°C
  • Operating relative humidity range: 5 to 85% (non-condensing)
  • Warranty
  • Warranty period: 3 years
  • Power supply
  • Operating voltage range (including -15/+20% according to IEC 62368-1): 10 to 14 VDC
  • Current consumption (with both relays ON): 0.2 A @ 12 VDC
  • Ethernet connectivity
    10 Mbit/s transfer rate
    Half-duplex mode only
    Auto-negotiation not supported
  • Digital inputs
  • Isolation: Non-isolated
  • Mode: Dry contact or Logic level
  • Maximum input voltage: +5.5VDC
  • Minimum input voltage for high logic level: +2.5VDC
  • Maximum input voltage for low logic level: +0.8VDC
  • Sampling rate: 10ms
  • Digital filtering time interval: 30ms
  • Relay outputs
  • Type: Form C (N.O. and N.C. contacts)
  • Contact current rating: 3 A @ 24 VDC/30 VAC (resistive load)
  • Initial insulation resistance: 100 mega-ohms (min.) @ 500 VDC
  • Mechanical endurance: 10 000 000 operations
  • Electrical endurance: 100 000 operations @ 3 A resistive load
  • Contact resistance: 50 milli-ohm max. (initial value)
  • Minimum pulse output: 1 Hz at rated load
  • CAUTION: The device does not contain any internal overcurrent protection facilities
    on the relays’ contact lines.
    External fuses or short circuit current limiting circuit breakers, rated to 3 Amps, are to
    be used for overcurrent protection of the connecting lines.
  • Internal FLASH memory
  • Endurance: 100 000 cycles (Every relay status and settings change is a memory cycle.)
