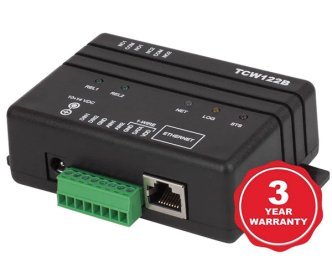

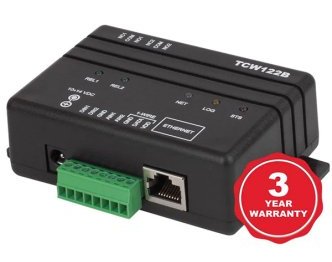

TCW122B-WD IP Watchdog Monitoring Module

TCW122B-WD is an IP watchdog monitoring module, purpose-built for ensuring the reliability of a fail-safe monitoring system.

This module manages the operation of devices or networks through the transmission and reception of ICMP echo requests and replies, respectively. It activates the relevant relay if there is no ICMP echo (ping) response within a specified time frame. This action can serve to reset the monitored device or network switch.

TCW122B-WD is equipped with two digital and two analog inputs. Its two relays feature both normally open and normally closed contacts.

For each monitored parameter, including temperature, humidity, analog voltage, and the status of digital inputs, SNMP traps can be dispatched based on predefined conditions.

The relays can be remotely activated through web-based (WEB) or SNMP control, or automatically triggered by the presence or absence of a ping response.

Key Features:

  • Secure web-based configuration and control with password protection.
  • Supports 1-Wire interface for connection with up to 2 sensors.
  • Features 2 relay outputs with both normally open and normally closed contacts.
  • Includes 2 analog inputs with a range of 0 to 60VDC.
  • Offers 2 digital inputs that can operate in either 'dry contact' or 'logic level' mode.
  • Provides reliable IP watchdog monitoring for added security.
  • Supports SNMP version 1 (SNMP v.1) for efficient network management.
  • Sends SNMP trap messages under specific conditions.
  • Includes VLAN and MAC address filtering for network control.
  • Allows for remote firmware updates to ensure continued functionality.

Use Cases:

  • Supervising small and medium-sized networks with watchdog monitoring.
  • Keeping an eye on temperature and humidity levels in server rooms.
  • Managing and overseeing ISP (Internet Service Provider) networks.
  • Exercising remote control over electrical devices.

Supported sensors

  • 1-Wire temperature sensor TST100
  • 1-Wire temperature sensor TST103
  • AC voltage detector TSV100
  • Smoke detector TSS8030R
  • 1-Wire humidity and temperature sensor TSH202
  • 1-Wire humidity and temperature sensor TSH206
  • Magnetic door sensor TSD800

Technical Properties:

  • Physical characteristics
  • Dimensions: 109 x 82 x 32 mm
  • Weight: 110 g
  • Environmental limits
  • Operating тemperature range: -20 to 55°C
  • Storage temperature range: -25 to 60°C
  • Operating relative humidity range: 5 to 85% (non-condensing)
  • Warranty
  • Warranty period: 3 years
  • Power supply
  • Operating voltage range (including -15/+20% according to IEC 62368-1): 10 to 14 VDC
  • Current consumption (with both relays ON): 0.2 A @ 12 VDC
  • Ethernet connectivity
  • 10 Mbit/s transfer rate
    Half-duplex mode only
    Auto-negotiation not supported
  • Digital inputs
  • Isolation: Non-isolated
  • Mode: Dry contact or Logic level
  • Maximum input voltage: +5.5VDC
  • Minimum input voltage for high logic level: +2.5VDC
  • Maximum input voltage for low logic level: +0.8VDC
  • Sampling rate: 10ms
  • Digital filtering time interval: 30ms
  • Analog inputs
  • Isolation: Non-isolated
  • Type: Single-ended
  • Resolution: 10 bits
  • Mode: Voltage
  • Input Range: 0 to 60 VDC
  • Accuracy: ±1%
  • Sampling Rate: 37.6ms per channel (averaged value of 64 samples)
  • Input Impedance: 1 mega-ohm (min.)
  • Relay outputs
  • Type: Form C (N.O. and N.C. contacts)
  • Contact current rating: 3 A @ 24 VDC/30 VAC (resistive load)
  • Initial insulation resistance: 100 mega-ohms (min.) @ 500 VDC
  • Mechanical endurance: 10 000 000 operations
  • Electrical endurance: 100 000 operations @ 3 A resistive load
  • Contact resistance: 50 milli-ohm max. (initial value)
  • Minimum pulse output: 1 Hz at rated load
  • CAUTION: The device does not contain any internal overcurrent protection facilities
    on the relays’ contact lines.
    External fuses or short circuit current limiting circuit breakers, rated to 3 Amps, are to
    be used for overcurrent protection of the connecting lines.
    1-Wire interface
  • Output voltage (+VW): 5.3 ± 0.2 VDC
  • Maximum output current (+VW): 0.2 A
  • Internal FLASH memory
  • Endurance: 100 000 cycles (Every relay status and settings change is a memory cycle.)
