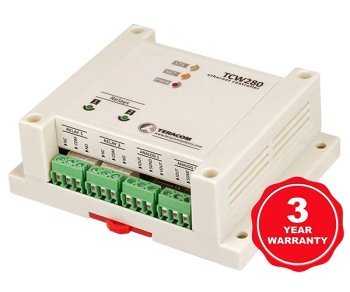

TCW280 Analog Output Module

With voltage or current loop modes, the analog output module provides two channels. The Web interface allows for channel mode customization. There are six options: 0-20 mA, 4-20 mA, 0-24 mA, 0-5 v, and 0-10 v. There is 12-bit resolution for both channels.
There are four open drain outputs on the device. All of them can be set up as PWM outputs or as regular digital outputs (on/off). The outputs in PWM mode can deliver up to 2000 Hz at 10-bit resolution.

The power supply of the module is galvanically insulated from analog outputs and open drain outputs. 1000 VDC of isolation separates the two components.

Two relays with typically open and normally closed contacts are also included in the module. The Web interface and a few M2M protocols, including SNMP, HTTP API, and MODBUS TCP/IP, can be used to activate relays.
The gadget has sophisticated scheduling capabilities. The four schedules can be used for one-time or recurring tasks that need to be completed every week. The time period has a resolution of 100 mS.The embedded RTC (real-time clock) and time server synchronization guarantee high accuracy when the planned tasks are carried out. Relays or open drain outputs can both be automatically activated by the schedules.

Features:

• Two 12-bit resolution analog voltage or current loop outputs;
• 4 outputs with open drains that support ON/OFF and PWM;
• Two relays with contacts that open and close normally;
• Support for SNMP v.2 and MODBUS TCP/IP, as well as SNMP traps to up to 5 receivers, such as alarm alert;
• WEB-based configuration and control with password protection;
• Periodical HTTP Post for client-server systems;
• XML/JSON status files;
• HTTP API commands;
• NTP support;
• Dynamic DNS support;
• Back/restore for easy device settings multiplications;
• Remote firmware update over the WEB interface.

Applications:

Analog output module for industrial automation;
Remote valves/actuators control;
Scheduled control for industrial processes;
Dimming LED (Light-emitting diode) lights;
Supervisory control;
An integral part of small to large SCADA systems.

Technical Properties:

• Physical characteristics

• Dimensions: 115 x 90 x 40 mm

• Weight: 170 g

• Mounting: wall and DIN rail
  Environmental limits

• Operating Temperature: -10 to 55°C

• Storage Temperature: -20 to 60°C

• Ambient Relative Humidity: 10 to 80% (non-condensing)
  Standards and Certifications

• Safety: EN 62368-1:2014 + EN 62368-1:2014/AC1-3:2015 + EN 62368-1:2014/A11:2017 +
  EN 62368-1:2014/AC:2017-03:2017, EN 62311:2008
  EMC: EN 55032: 2015 + EN 55032: 2015/AC:2016-07 + EN 55032: 2015/A11:2020
  EN 55024: 2010 + EN 55024: 2010/A1:2015
  EN 61000-3-2: 2014
  EN 61000-3-3: 2013 + EN 61000-3-3: 2013/A1:2019
  RoHS: Compliant

• Warranty

• Warranty period: 3 years
  Power supply
  Operating voltage range (including -15/+20% according to IEC 62368-1): 10 to 28 VDC
  Current consumption: 220 mA @ 12 VDC (all relays on and analog outputs at 24mA)
  Analog outputs

• Isolation: Functional isolation

• Type: Single ended

• Resolution: 12 bits

• Mode: Voltage or Current loop (WEB interface selectable)

• Ranges: 0/5V, 0/10V, 0/20mA, 4/20mA, and 0/24mA

• Accuracy: ±1%
  Digital outputs

• Isolation: Functional isolation

• Type: Open drain

• Maximum drain voltage: 24VDC

• Maximum drain current: 0.3A

• Mode: ON/OFF or PWM (WEB interface selectable)

• PWM resolution: 10 bits

• PWM frequencies: 1, 5, 10, 50, 100, 500, 1000, and 2000 Hz

• Caution! The device does not contain any internal overcurrent protection facilities on
  the digital outputs’ lines. External fuses or short circuit current limiting circuit breakers,
  rated to 0.4 Amps, are to be used for overcurrent protection of the connecting lines

• Relay outputs

• Type: Form C (N.O. and N.C. contacts)

• Contact current rating: 0.5 A @ 24 VDC, 30 VAC (resistive load)

• Initial insulation resistance: 100 mega-ohms (min.) @ 500 VDC

• Mechanical endurance: 10 000 000 operations

• Electrical endurance: 100 000 operations @ 0.5 A resistive load

• Contact resistance: 100 milli-ohms max. (initial value)

• Pulse output: 0.1 Hz at rated load

• Caution! The device does not contain any internal overcurrent protection facilities on
  the relays’ contact lines. External fuses or short circuit current limiting circuit breakers,
  rated to 0.63 Amps, are to be used for overcurrent protection of the connecting lines.

• Internal FLASH memory

• Endurance: 100 000 cycles (any save command)
  Lithium battery

• Type: CR1220
  Caution! Risk of explosion if the battery is replaced by an incorrect type.
