Flange-Mounted Smart Pressure Transmitter DMS858

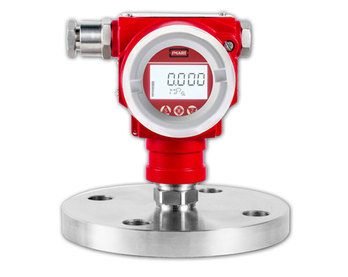

Smart Series Flange Mounted Low Pressure Transmitter

The DMS305X pressure transmitter is a high-performance pressure transmitter with international-leading technology designed with high technology. The sensor is placed at the top of the metal body and kept away from the environmental interface to realize mechanical and thermal isolation. Glass sintering sensor wire realizes high-strength electrical insulation of the metal base and improves the flexibility and transient voltage resistance protection of the electronic circuit. All these original encapsulation technologies enable the DMS305X to easily cope with extreme chemical conditions and mechanical loads and have strong resistance to EMI, sufficient to respond to the most demanding industrial environment applications.

  • Double diaphragm overload structure can easily cope with high overload tests.
    355° rotation display module, user-friendly keypad Easily set parameters function
  • Temperature and static pressure effects are eliminated by high technology diaphragm liquid filling.
  • High-strength metal electrical protection enclosure withstands the harshest environmental conditions.
  • Strong transient voltage resistance to protect the terminal module.
  • Menu setting with three external keypads allows adjustments in the field.
  • With wonderful design, the appearance fully shows the high technological understanding of science and technology.

Technical Properties:

  • Brand / Model: Dimens / DMS858
  • Measurement Range: -1Bar ~ 10 Bar (Adjustable Pressure Range)
  • Output Signal: 4-20mA, 4-20mA+HART, Ask for different signals
  • Precision: ±0.1 URL
  • Stability: ±0.2% URL/Year
  • Diaphragm: SUS316L, Hastelloy C, Tantalum, SUS316 + PTFE coating, Tantalum + PTFE coating, Hastelloy C + PTFE coating.
  • Fluid Temperature: -40-120℃
  • Protection Class: IP67
  • Mechanical Connection: DN50PN10 flange, DN25PN10 flange
  • Certificates: CSA, NEPSI, CE, RoHS
