Hygienic Pressure Transmitters DMS858-TST

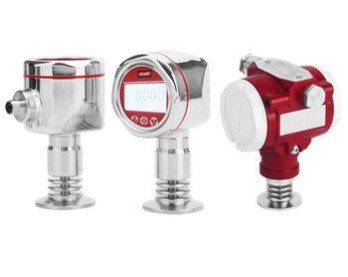

Hygienic Connection Smart Pressure Transmitter DMS858-TST

It features a new microprocessor and surface mount technology that collects the signal from the pressure sensor, processes it, and corrects the measurement error through the internal temperature sensor. Thus, the performance of the pressure transmitter is completely improved. The new external three-setting keypad makes it easier to operate parameter settings and ensures safer operation in hazardous situations. Thanks to the HART feature, it is possible to configure the measurement information remotely with the HART software.

  • Excellent stainless steel welding technology and surface treatment process meet international hygienic standards.
  • Durable integrated stainless steel body to ensure long performance life.
  • Stainless steel surface roughness Ra≤ 0.4μ m complies with international sterile standards.
  • Robust and superior stainless steel process flange.
  • Terrific Extra thick reinforcement structure.
  • Strong protection with high static pressure and high overload.

Technical Properties:

  • Brand / Model: Dimens / DMS858-TST
  • Measurement Range: 0.1Bar - 30 Bar (Adjustable Pressure Range)
  • Output Signal: 4-20mA, 4-20mA+HART, Ask for different signals
  • Precision: ±0.2% URL, ±0.5% URL
  • Stability: ±0.2% URL/Year
  • Diaphragm: SUS316L, Hastelloy C
  • Fluid Temperature: -40-120℃
  • Protection Class: IP67
  • Electrical connection: Aluminum alloy terminal, 2 cable entries M20 * 1.5 (F), red body, white cover
  • Mechanical Connection: Tri-Clamp 1-1/2", Tri-Clamp 2", DIN32676 DN32/DN40/DN50, ISO2852 DN38/DN40/DN51, DIN11851
    DN25 / DN40 / DN50, SMS DN1-1 / 2”
  • Certificates: CSA, NEPSI, CE, RoHS
