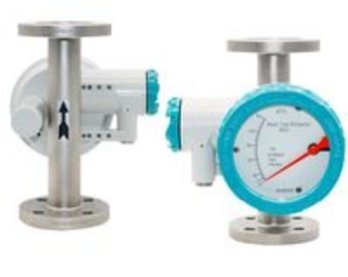

Metal-Tube Flow Meter

Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Outer Casing Material : Aluminum .
  • Wet Parts : 316 stainless steel, PTFE , or plastic.
  • Flow Units : L/h ,m3/h ,kg/h , % ,
  • Flow Range :
  • Water : 30 l/h - 120,000 l/h. (you ask for specific scala)
  • Air: 0.1 Nm3/h - 450 Nm3/h. (you ask for specific scala)
  • Connection Types :
    Flange-type, trip clamp, gear type
  • Connection Diameter: 1/2˝ ~ 5˝
  • Connection Mounting Length : 250 mm, standart( 350 mm Exproof)
  • Temperature : 200°C(300°C optional)
  • Protection Class : IP 65
  • Precision : ±2% FS,(±1.6 F.S Optional)
  • Maximum Pressure : 40 Bar (100 Bar optional )
  • Optionals :
  • Alarm Output : Switch Output (Microswitch : 3A/250VAC, 5A/30VDC, 0.4/125VDC
  • Analogue Output + Alarm Output : ble, 4~20 mA 2-wire output + Switch
