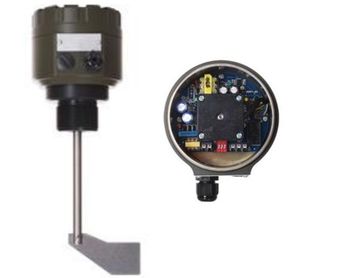

Motor Level Switch

Motor Level Switch can be rotated in the opposite direction without difficulty. Because of this important feature does not occur gear stripping in equivalent. Product is 8 torque gradual.Thus, torque adjustment can be made. Motor type level switch is used to detect the level of dust and coarse material in each silo and container.

APPLICATION AREAS

• Construction Sector; lime, fine sand, dolomite, calcite, gypsum, cement, stone, coal
• Food Sector; milk powder, flour, salt, sugar
• Plastic Industry; plastic particles

FUNCTION

Returned pallet structure at the end of the motor level switch will be prevented rotation of the pallet when the coated by particulate material. The sensor detects that the rotation of the palette will produce an electrical signal output. Torque settings of product be adjusted depending on density of the material.

Technical Documentation

• PDF l Technical Properties
• PDF l User Guide
• PDF l Connection Scheme

TECHNICAL PROPERTIES/ELECTRICAL PROPERTIES

• Connection Terminal: PG9
• Signal Delay: 1.6 sec max
• Precision: Adjustable 8 steps
• Rotation Speed: 8 rpm
• Supply Voltage: 15..35V DC 2.7W / 95...265V AC 3.1W 50..60Hz
• Signal Output: 1 enversör contact AC max. 250V, 2A,
• Signal lamp: LED
• Protection Class: IP68

TECHNICAL PROPERTIES/MECHANICAL PROPERTIES

• Box: Aluminum IP 68
• Sensor pallet connection: IP 67
• Connection Material: Delrin® POM-C EN 10204
• Connection Size: R 1½.”
• Mile and pallet material: Stainless Steel SS304
• Weight: 1,2 kg

TECHNICAL PROPERTIES/WORKING CONDITIONS

• Ambient temperature(Box): -20°C.. +60°C
• Working Temperature ( Prob ): -5°C.. +100°C
• Minimum density: 250 g/l
• Maximum part measurement: 12mm
• Mechanic load: 500N side mile
• Maximum Mile output torque: 550gcm
• Maximum Pulling force: 2kN
• Maximum Operating pressure: 0.5 bar
• Maximum Working vibration: 5-500Hz RMS random vibration 3G IEC-60068-2-64
