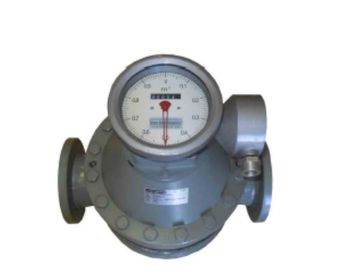

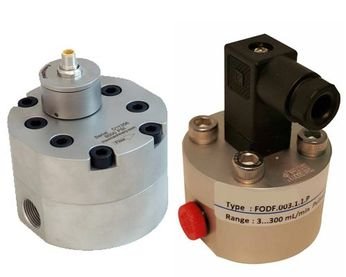

Positive Displacement Flowmeter

Positive displacement flowmeter was designed for flow measurement in viscosity high liquids.

Use Areas
  • Oval Gear (positive displacement) flowmeter
  • Hydraulic oils
  • Lubricating oils
  • Dye
  • Epoxy
  • Grease
  • Polyuretane
  • Additives
  • Syrups
  • Glue
Technical Documentation
  • PDF l Technical Properties
  • PDF l User Guide
  • PDF l Connection Scheme
Technical Properties
  • Measurement Range: 1 L/ H - 6000 L/H
    Connection Sizes; between ¼" and 1" (you ask for other connection diameter)
  • Precision : % 0,5 O.D.
  • Viscosity : 2000 cP max.
  • Output : Pulse (4-20mA 0...10 volt 0...5 volt optional)
  • Mounting Position : Horizontal and Vertical (up)
  • Temperature Range : -10°C...60°C (80 optional)
  • Maximum Pressure : pom 12 bar, 70 Bar (110 Bar optional) for Aluminum and 316 stainless
  • Application Areas : Viscous Liquids
  • Protection Class : IP68
  • External Protection : 316 stainless, Aluminum or POM
  • Gear Material: POM
