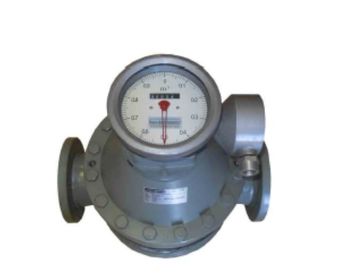

Positive Displacement Flowmeter Needled
Positive displacement flowmeters are designed for flow rate values in liquids with high viscosity.
Use Areas
- Oval Gear (positive displacement) flowmeter
- Hydraulic oils
- Lubricating oils
- Dye
- Epoxy
- Grease
- Polyuretane
- Additives
- Syrups
- Glue
Technical Documentation
- PDF l Technical Properties
- PDF l User Guide
- PDF l Connection Scheme
Technical Properties
- Measurement Range : 0,15 M3/H - 1,5 M3/H ile 20 - 200M3/H
- Connection Sizes: Between DN15 and DN 150 arası (you ask for other connection diameter)
- Precision: % 0,5 O.D.
- Viscousity : 2000 cP max.
- Output : Optional Pulse or 4-20mA
- Moounting Position : Horizontal and Vertical (up)
- Temperature Range : -10°C...80°C (200 °C optional)
- Application Areas : Viscous Liquids
- Protection Class : IP67
- External Protection : Casting
- Indicator: Analogue Needled
