  3. 1-Wire Current Loop Transmitter TSA200

1-Wire Current Loop Transmitter TSA200

Wire Current Loop Sensor TSA200 Supplier

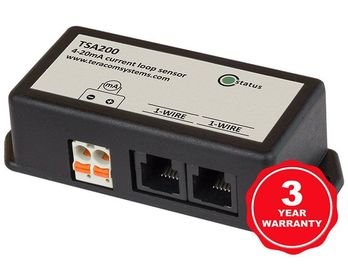

The TSA200 is a 1-Wire current loop transmitter that accepts input within the 0-20mA/4-20mA range. It's important to note that the current loop input is electrically isolated from the interface.

This device communicates through a 1-Wire bus, and each sensor possesses a unique 64-bit serial code. This feature allows for the connection of multiple sensors on the same 1-Wire bus.

To facilitate the setup of multi-sensor systems, the TSA200 includes two RJ11 connectors for easy daisy-chaining.

This versatile transmitter can be linked to a wide range of industrial sensors with 0-20/4-20mA output. The controller can then convert the output readings from mA to other units by using an offset and multiplier.

TSA200 is suitable for measuring various parameters, both electrical and non-electrical, including liquid levels, air pressure, gas concentration, illumination, acidity (pH), and more.

It's important to note that the TSA200 is a passive device. For certain applications, you may require an external DC power supply, typically rated at 12/24/36VDC.

Key Attributes

  • Electrical isolation between the current loop input and the 1-Wire interface.
  • Impressive 10-bit resolution for precise measurements.
  • Boasts remarkable long-term stability.
  • Featuring an IP30 rating, it's protected from dust and moisture.
  • Extremely low power consumption.
  • Supports multiple sensors with unique 64-bit serial numbers.

Potential Applications

  • Ideal for monitoring air pressure in various industrial processes.
  • Perfect for high-temperature monitoring needs in settings like bakeries and dryers.
  • An excellent choice for controlling heating, ventilation, and air conditioning (HVAC) systems.
  • Well-suited for high current monitoring when paired with split core transducers in industrial processes.

The 1-Wire current loop can be used with
Ethernet IO module TCW241
Ethernet data logger TCW220

Technical Properties:

  • Supply voltage range (1-Wire bus): 4.5 to 5.5 V
  • Maximum supply current (1-Wire bus): 40 mA
  • Input DC current range: 0 to 20 mA
  • Resolution: 0.01 mA
  • Accuracy: ±2 %
  • Isolation voltage: 1000 VDC
  • Operating temperature range: 0 to +40 °C
  • Operating relative humidity range: 0 to 85 %RH (non-condensing)
  • Dimensions: 85 x 35.1 x 23.5 mm
