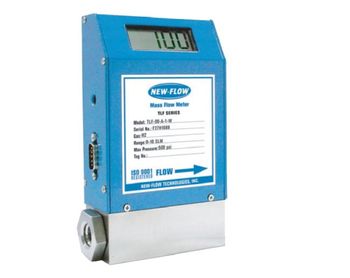

Line Type Thermal Mass Flowmeter

TLF Line Type Thermal Mass Flowmeter

New Flow Thermal Mass Flowmeter which Air Flowmeter provides high performance at flow measurement. Thermal Mass Measurement Technology is latest technology. It measures air and gas flows with high precision and high sensitivity. Because of having the 100:1 of conversion rate of the thermal mass flow measrement very low flow rates can be measured with great precision. Thus, it can be used in the detection of leakage flow.

Technical Documentation
Technical Properties
  • Flow Body : Tabcon, 316 Stainless Steel,
  • Measurement Range : 0...0,1 l/min , 1000 l/min
  • Output Signal: 0-5 VDC Linear min. Load resistance 1000Ω or
    4-20 ma Lineer, Resistance 500Ω
  • Supply : 24 VDC Standard, optional 115 VAC, 220 VAC @500ma
  • Precision : +/- 1% FS
  • Scala Conversion Rate : 100:1
  • Repeatablility : +/- 0.15% FS or better
  • Electrical Connection: 9 Pin Sub "D"
  • Process Connection : 1,4, 1/2˝ 1" a NPT Female Thread
  • Maximum Pressure : 35 bar
  • Sampling Time : 1 Second
  • Temperature Coefficient : 0.05 % full scala 1 ˚ C per or better
  • Pressure Coefficient: 0.01 % full scala PSIGw per or better
  • Indicator: LCD Screen
  • Fluid : Non-aggressive gases
