Mini Level Switch – Stainless Steel

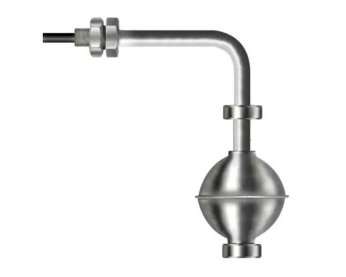

High Quality Mini Level Switch

When the magnetic field of the magnet inside the float aligns with the reed sensor in the tube, the stainless steel level switch opens or closes the electrical circuit. The sensor travels back to its initial position as soon as the stainless steel level switch displaces from the float. A float level meter (pulled contact can be manufactured upon request) and a relay circuit can be used to analyze level information.

Level Switch Application Areas

  • Machines
  • Hydraulic Oil Tanks
  • Small Warehouse Applications


  • It is economical
  • Practical and easy to assemble
  • Quick delivery time
  • It is completely stainless steel

Technical Properties:

  • Application Sites: Liquids
  • Mechanical Connection: 1/8"
  • Maximum Contact Capacity: 50W
  • Withstand Current, Voltage (Maximum): 0.5 A 250 Volt AC
  • Strength Temperature: -10…….+150°C
  • Body Material: 304 SS Stainless Steel
  • Working Pressure: 10 Bar
  • Connection Type: Vertical
  • Minimum Density: 0.75 g/cm3
  • Protection Class: IP65
