Miniature Level Switch Stainless Steel

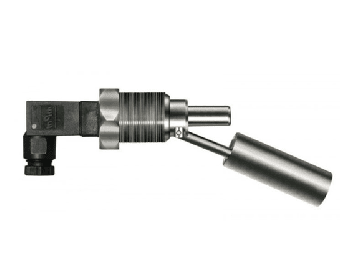

Miniature Stainless Steel Level Switch With Affordable Prices

Working Principle

When the magnetic field of the magnet inside the float lines up with the reed sensor in the tube, the side-mounted stainless level switch, which is made of metal, opens or shuts the electrical circuit. The sensor shifts back to its original position as the magnetic level meter float moves away. Requests for (removed contact) can be made. The stainless steel side-mounted level switch has a relay circuit that may analyze level information.

Level Switch Application Areas

  • Machines
  • Hydraulic Oil Tanks
  • Small Warehouse Applications

Technical Properties:

  • Application Sites: Liquids
  • Mechanical Connection: 1/2"
  • Maximum Contact Capacity: 50W
  • Withstand Current, Voltage (Maximum): 0.5 A 250 Volt AC
  • Strength Temperature: -10…….+150°C
  • Body Material: 304 SS Stainless Steel
  • Working Pressure: 5 Bar
  • Connection Type: Horizontal
  • Minimum Density: 0.7 g/cm3
  • Protection Class: IP65
