Dimens 820T Low Turbidity Sensors
Applications:
- Water purification and wastewater plants
- Industrial water
- Recycled water
Features:
- Innovative optical technology for reliable concentration measurement
- Utilizes the 90° light scattering technique

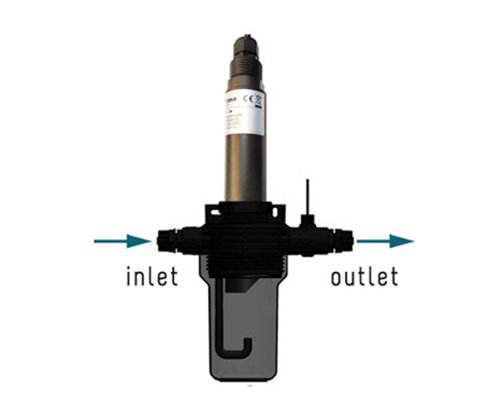

- Easy maintenance with flow-through tank installation
Specifications:
- Measurement principle: 90° light scattering technique
- Measurement range: 0.001-100.0 NTU
- Resolution: 0.001/0.01 NTU (mg/L)
- Accuracy: ±2% of reading for < 40 NTU, ±5% of reading for > 40 NTU
- Materials: PVC housing, special optical glass
- Dimensions: Diameter: 42mm, Length: 230mm, Connection: 1" GAS
- Cable: 10m as standard
- Pressure: 4 bar
- Operating temperature: 0 - 60°C
- Protection class: IP68
- Installation: Flow-through or immersion
