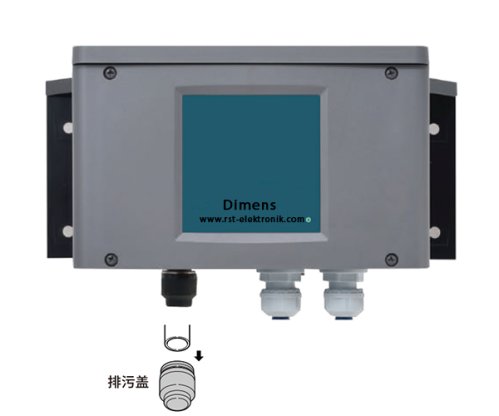

Dimens 850T High Accuracy Turbidity Sensor

Dimens 850T High-Accuracy Turbidity Sensor

Key Features:

  • Precise Measurement: Utilizes the 90° scattered light principle
  • Wide Measurement Range: Ranging from 0.0001 to 100 NTU
  • High Resolution: Offers three resolution options - 0.0001, 0.01, or 0.1 NTU
  • Exceptional Accuracy: Ensures accuracy within ±2% of the reading or 0.02 NTU, whichever is greater
  • Reliable Light Source: Utilizes long-lasting LED light source
  • Flexible Power Supply: Supports a wide power input range (90-260VAC, 50/60Hz) with an optional 24VDC input
  • Intuitive Display: Features a backlit LCD display showing measured values, temperature, and relay status
  • Multi-Language Support: Offers a choice between Chinese and English language settings
  • Analog Output: Provides an isolated 4-20mA output for turbidity with a maximum load of 600Ω
  • Efficient Digital Communication: Equipped with RS485 Modbus RTU communication
  • Precise Alarm Outputs: Features two sets of independently adjustable Hi/Lo alarm points with hysteresis settings
  • Robust Protection: Maintains an IP65 protection rating for durability
  • Optimal Water Flow: Operates efficiently with a flow rate of 100-200ml
  • Versatile Temperature Range: Functions reliably in temperatures from 0°C to 50°C
  • User-Friendly Mounting: Wall-mounted design for easy installation
  • Compact Dimensions: Sensor measures 160 x 260 x 150mm
  • Efficient Weight: Controller approximately 1Kg, Sensor around 2Kg
