Trigas Turbine Flowmeter DM-20 | 3,8 l/min to 490 l/min

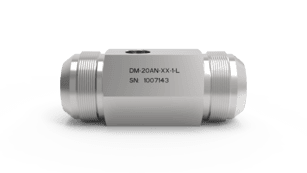

Cost-Effective Turbine Flow Meter

Turbine flow meters are the most effective at handling difficult measurements. If you need features like the following, TrigasDM's turbine flowmeters are designed exclusively for these kinds of solutions:

High accuracy
accelerated response times
compact form
superior dependability while operating continuously
variable variations in flow
viscosities and operating temperatures that vary

These flowmeters are suitable for a variety of professional tasks, including:

monitoring the flow rates of fuels coolants or lubricants used in engine and engine construction
dosages in the food and beverage industry
pharmaceutical industry
monitoring and measuring ultrapure water during research.

Technical Properties

Flow Range: 34 l/min to 400 l/min (9 GPM to 106 GPM)
Extended Flow Range: 3,8 l/min to 490 l/min (1 GPM to 130 GPM)
Operating Pressure: up to 350 bar
Pressure Loss (at 70% linear flow): 0,62 bar
Temperature Range: -270°C to 400°C (-454°F to 752°F)
Response Time: <3 ms
Calibration Accuracy: ≤±0,03% of measurement
Repeatability: ≤±0,05% of measurement
Linearity in Linear Flow Range: ≤±0,5% of measurement
Linearity with Linearizer: ≤±0,1% of measurement
K-Factor: 245 Impulse/l
Max. Frequency: 2000 Hz
Housing and Turbine Material: Stainless Steel
Ball Bearing Material: Ceramic bearings, Steel cage
Weight: 957 g
Inner Diameter: 25,4 mm
Length: 103 mm
Connection: AN threaded connection
Connection Size: 1 1/4“
Connection Thread: 1-5/8“ -12UNJ-3A
Prefiltration: 20µ (Recommended)
Inlet: 254 mm (Recommended)
Outlet: 127 mm (Recommended)
Standard viscosity: 1,3 mm²/s
