Trigas Turbine Flowmeter DM-24 | 6 l/min to 820 l/min

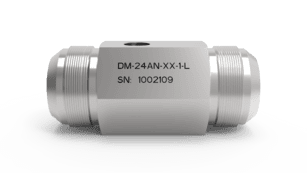

Affordable Trigas Turbine Flowmeter

Turbine flow meters are the ideal solution for demanding measurements. If you need features such as these below, turbine flowmeters from TrigasDM are produced exactly for thise types of solution:

High accuracy
Very fast response times
Compact design
High reliability in continuous operation
Fluctuating flow changes
Varying operating temperatures/viscosity

These types flowmeters can be used for a wide range of applications for professional works like:

monitoring the flow rates of fuels coolants or lubricants used in engine and engine construction
dosages in the food and beverage industry
pharmaceutical industry
monitoring and measuring ultrapure water during research.

Technical Properties

Flow range: 57 l/min to 700 l/min
Flow range expanded: 6 l/min to 820 l/min
Operating pressure: up to 250 bar
Pressure loss (at 70% linear flow): 0.89 bar
Temperature range: -270°C to 400°C
Response time: <3 ms
Calibration accuracy: ≤±0.03% of measured value
Repeatability: ≤±0.05% of measured value
Linearity in the linear flow range: ≤±0.5% of measured value
Linearity with linearization electronics: ≤±0.1% of measured value
K factor: 110 pulses/l
Max. frequency: 1500Hz
Housing and turbine material: stainless steel
Ball bearing material: Ceramic balls, stainless steel cage
Weight 1208g
Inner diameter: 33.4mm
Length: 116.6mm
Connection type: ON thread connection
Nominal connection width: 1 ½”
Connection thread: 1-7/8" -12UNJ-3A
Pre-filtration: 50µ - recommended
Inlet route: 344mm - recommended
Recommended run-out distance: 172mm
Standard viscosity: 1.3 mm²/s
